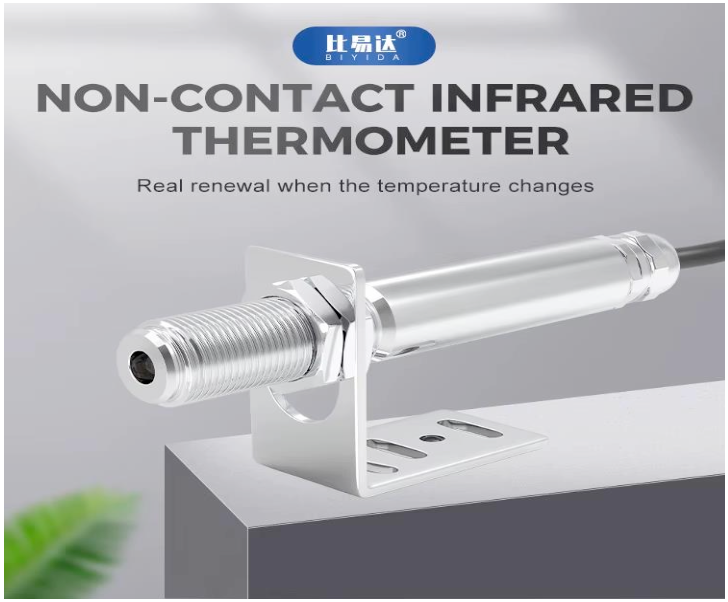

Non contact temperature sensor
Non contact temperature sensor

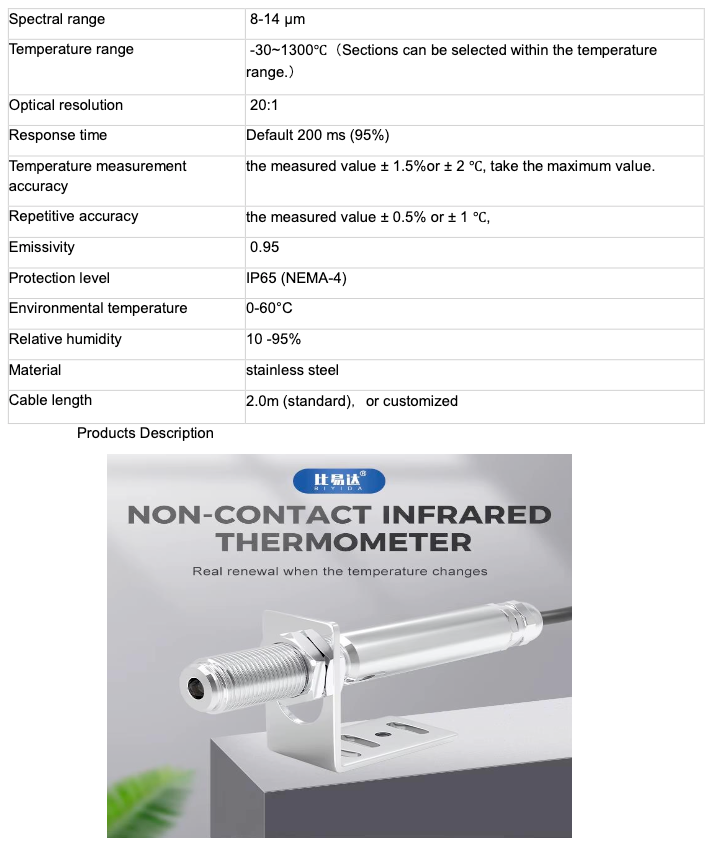

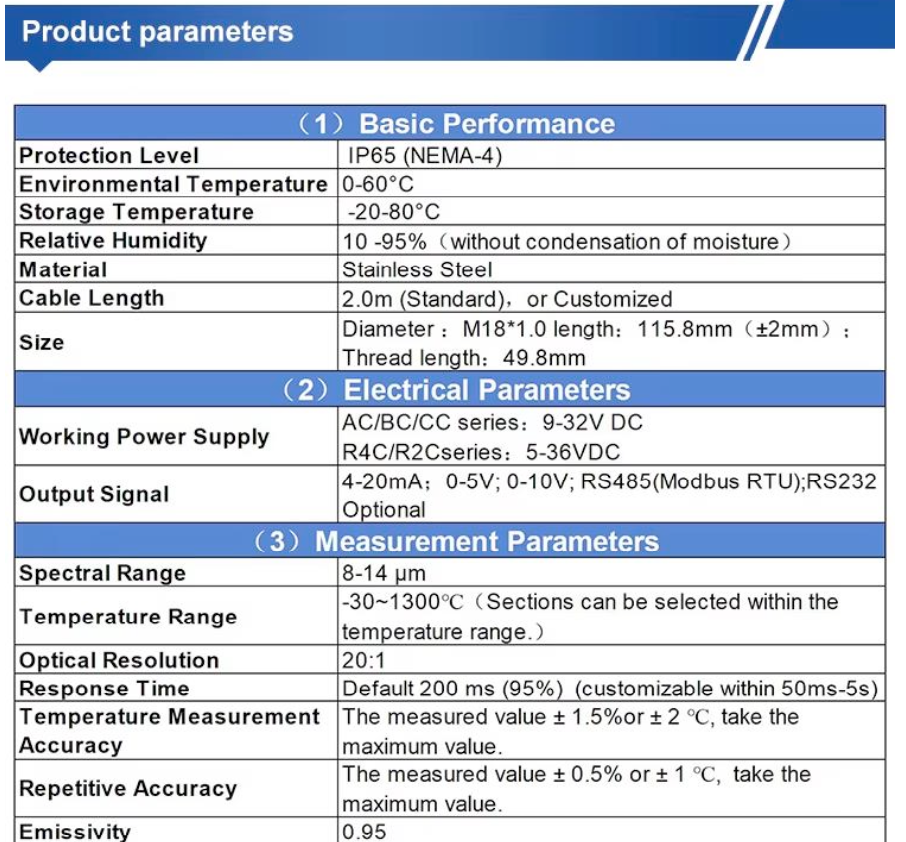

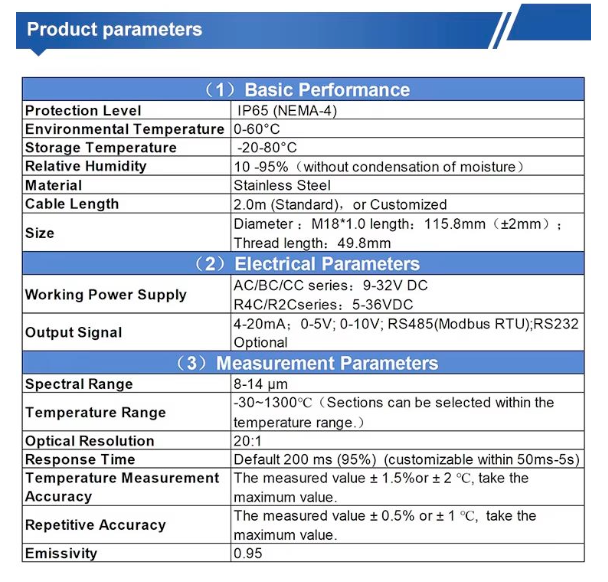

| Specification | Value |
|---|---|
| Spectral range | 8-14 µm |
| Temperature range | -30~1300°C (Sections can be selected within the temperature range.) |

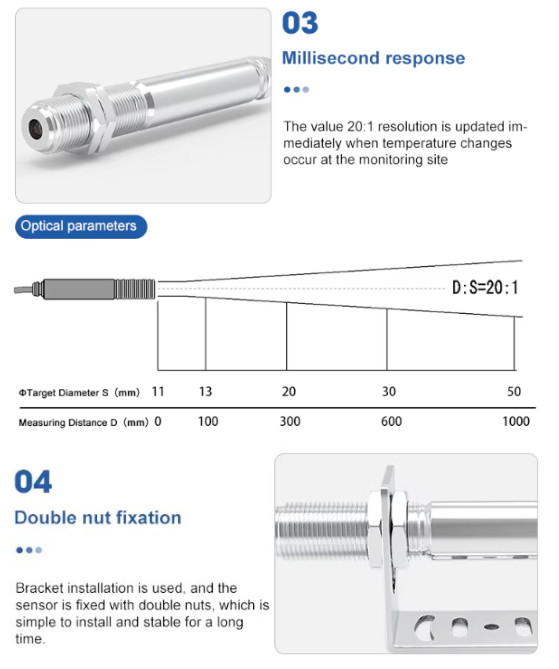

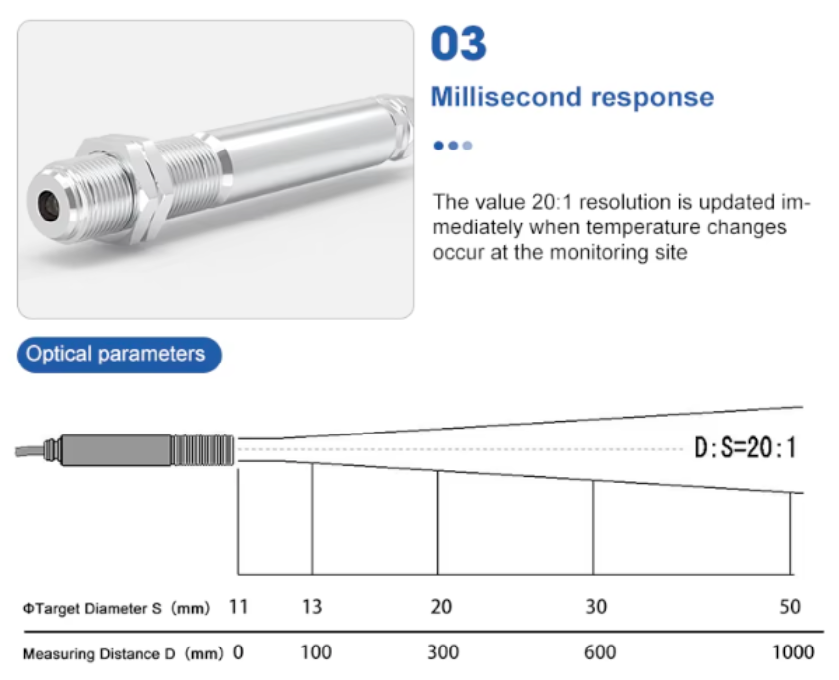

| Optical resolution | 20:1 |
| Response time | Default 200 ms (95%) |
| Temperature measurement accuracy | The measured value ± 1.5% or ± 2 °C, whichever is greater. |
| Repetitive accuracy | The measured value ± 0.5% or ± 1 °C |
| Emissivity | 0.95 |
| Protection level | IP65 (NEMA-4) |
| Environmental temperature | 0-60°C |
| Relative humidity | 10 - 95% |
| Material | Stainless steel |
| Cable length | 2.0m (standard), or customized |

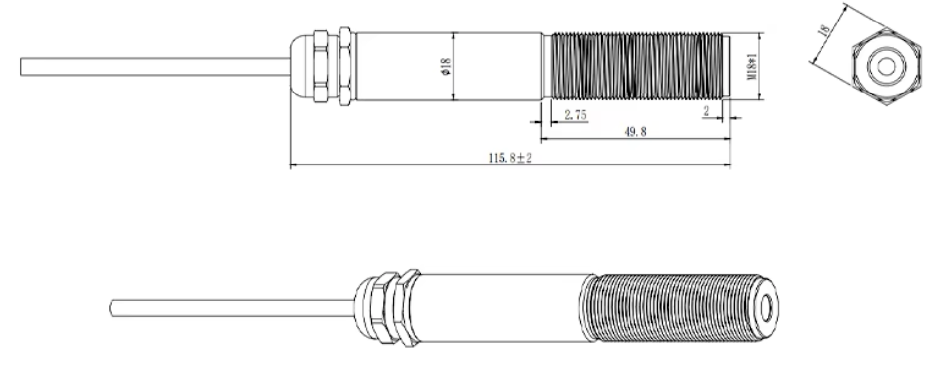

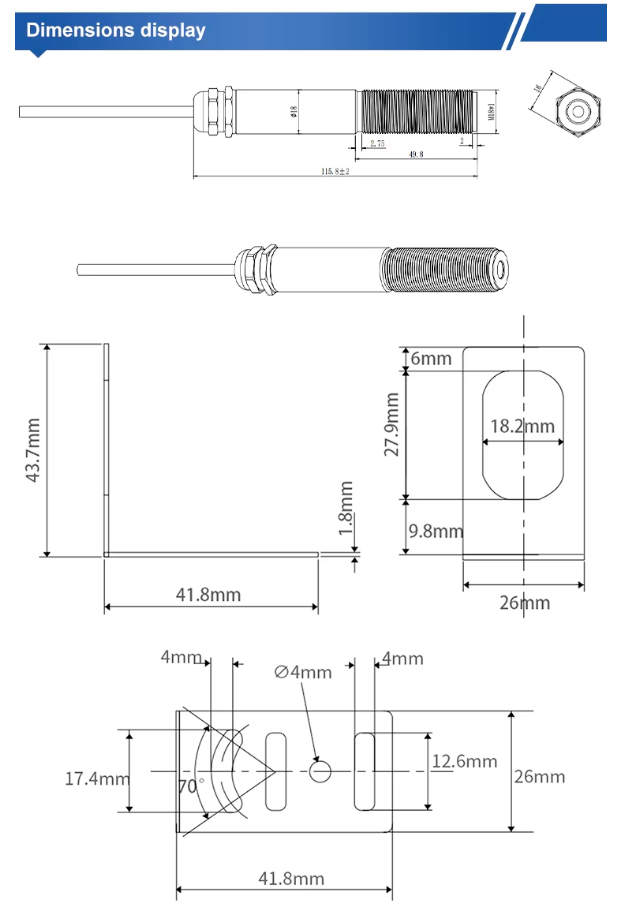

Dimension display

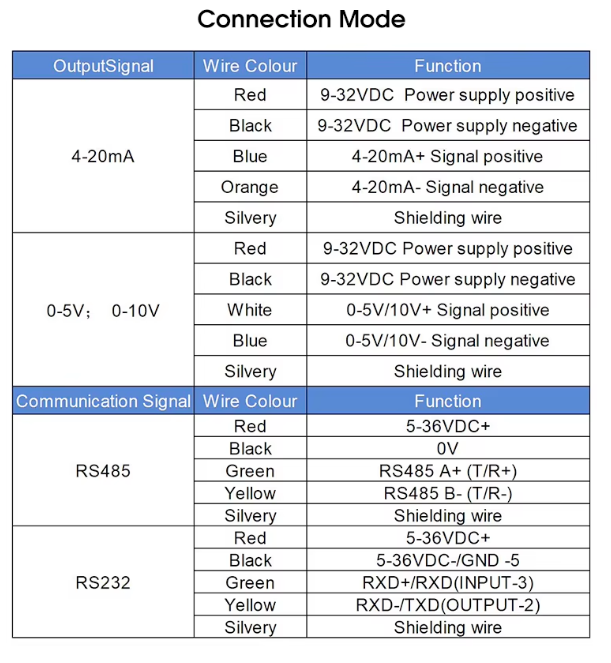

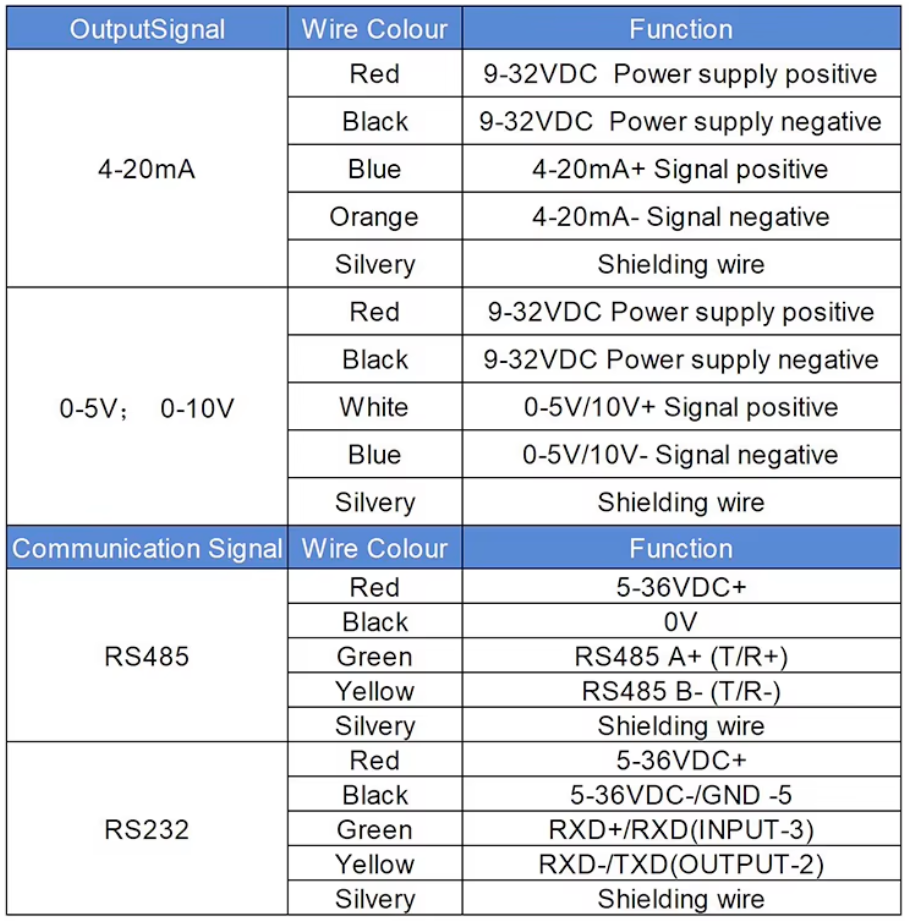

Connection mode
