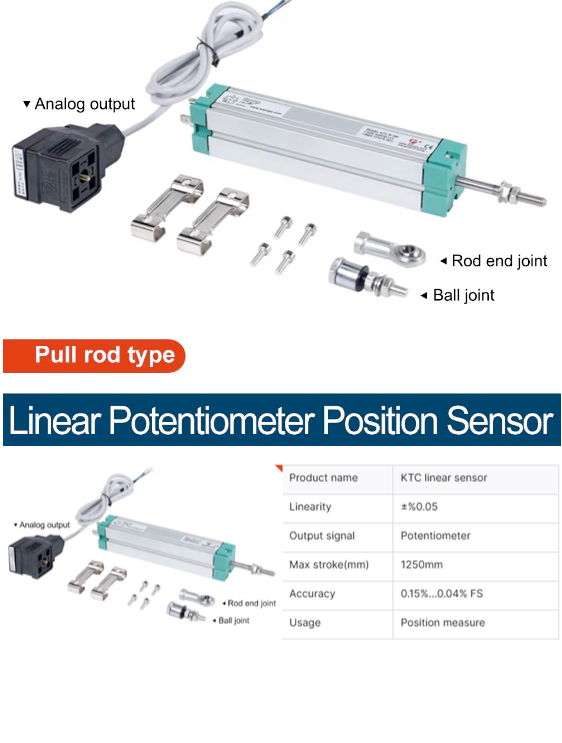

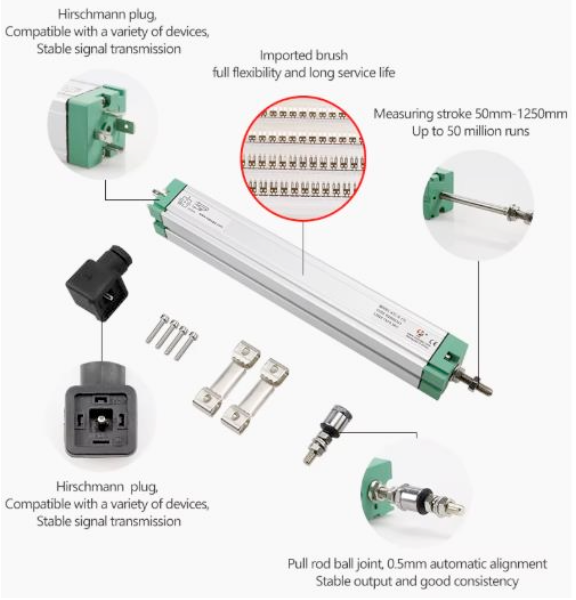

Linear potentiometer
Technical Specification
| Mounting Type | Free | |
| Model Number | MPXXXX | |
| Brand Name | MW ITRACK | |
| Usage | Position Measure | |
| Description | Linear Displacement Transducer | |
| Type | Linear Displacement Sensor | |
| Features | High precision | |
| Theory | Analog Sensor | |
| Output | Resistance Sensor | |
| Measuring range | 50 mm...1250 mm | |
| Power supply | 12 ~ 24V DC | |
| Output signal | Resistance / 4-20mA / 0-5v / 0-10v | |
| Accuracy | 0.15%...0.04% FS | |
| Housing material | Aluminum alloy | |
| Shaft material | Stainless steel | |
| Electrical connection | Hirschmann connector or custom length wire exit | |
| working temperature | 5-45 Degrees | |
| Protection class | IP65 | |
| Application | Industrial Automation | |
| Description | linear position sensor | |
