hand held tachometer contact & non-contact type
Introduction
Measuring Range: 0.5~19999 Resolution rate: 0.1 rpm (0.5~999.9 rpm) 1 rpm (1000~99999 rpm) Accuracy rate: 0.05%+1 Sample interval: 0.8s(60RPM or above) Accuracy: ±(0.1%n+5d)rpm; (2.5~999.9rpm) ±(1%n+5d)rpm;(1000~99999rpm) Laser Output: CLASS ⅡA: 2-5mW Sampling Rate: 1 Time / Second Measuring Distance: 50-500mm MAX., MIN., AVG. and LAST Value: YES Display: LCD with Back Light Auto Power Off: One Minute Without Any Operation Low Battery Alert: YES Operating Environment: 0~50℃,32~122℉;10~90%RH (Non-condensation) Storage Environment: -10~80℃, - 14~176℉;10~75%RH (Non-condensation) Unit Size: 55.7*29.9*127 mm Weight: 106g Power: 2*1.5V AAA Batteries Quantity per Carton: 60 pcs Carton Size: 43.9*35.9*30.3 cm Carton Gross Weight: 11.4 KG Power: Two 1.5V AAA batteries Size: 55.0*33.0*157.8mm Tachometer is one of the necessary instruments in machinery industry, which is used to measure rotation speed, linear speed frequency of electric motor, as well as rotation speed of impeller blades, roller and shaft. It is widely used in industries like e motor,fan, washing machine, textile, automobile, aircraft, ships, etc.

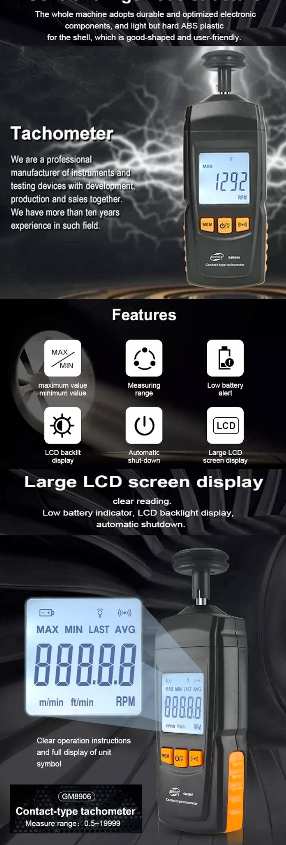

Features:
- Maximum value, minimum value, average value, last measured value holding.
- Clear operation instructions and full display of unit symbol
- A wide range of measurement, high resolution.
- Low battery indicator, LCD backlight display, automatic shutdown.
- With combination of latest microprocessor technology and laser technology, the instrument is more intelligent
- Large LCD screen display, clear reading.
- Solid and ingenious structure. The whole machine adopts durable and optimized electronic components, and light but hard ABS plastic for the shell, which is good-shaped and user-friendly.
| Models | GM8906 | |
| Measuring Range | 0.5-99999 rpm | |
| Resolution | 0.1 rpm (0.5~999.9 rpm), 1 rpm(1000~99999 rpm) | |
| Accuracy | ±(0.1%n+5d)rpm:(2.5~999.9rpm), ±(1%n+5d)rpm:(1000~99999rpm) | |
| Laser Output | CLASS IIA: 2-5mW | |
| Sampling Rate | 1 Time / Second | |
| Measuring Distance | 50-500mm | |
| MAX, MIN, AVG, and LAST VAlue | ~ | |
| Display | LCD with Back Light | |
| Auto Power Off | One Minute Without Any Operation | |
| Low Battery Alert | ~ | |
| Operating Environment | 0-50°C,32-122°F: 10-90% RH (Non-condensation) | |
| Storage Environment | -10-80°C -14-176°F:10-75% RH (Non-condensation) | |
| Unit Size | 55.7 29.9 127 mm | |
| Weight | 106g | |
| Power | 2*1.5V AAA Batteries | |
| Quantity per Carton | 60 pcs | |
| Carton Size | 43.9 35.9 30.3 cm | |
| Carton Gross Weight | 11.4 KG | |
