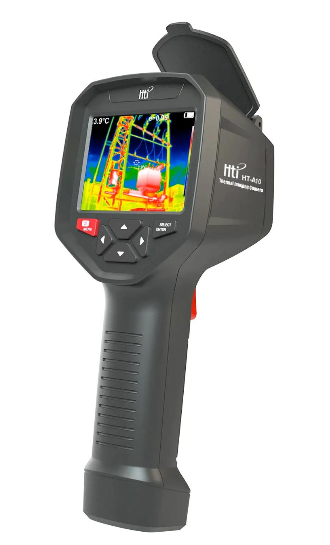

HTI HT-A10 Thermal Imager: A Comprehensive Review
The HTI HT-A10 Thermal Imager is a versatile tool designed for a wide range of applications, from industrial inspections to outdoor activities. With its high-resolution infrared sensor, WIFI connectivity, and long-lasting battery, the HT-A10 offers exceptional thermal imaging capabilities. In this blog post, we'll delve into the key features and specifications of the HT-A10.
Key Features

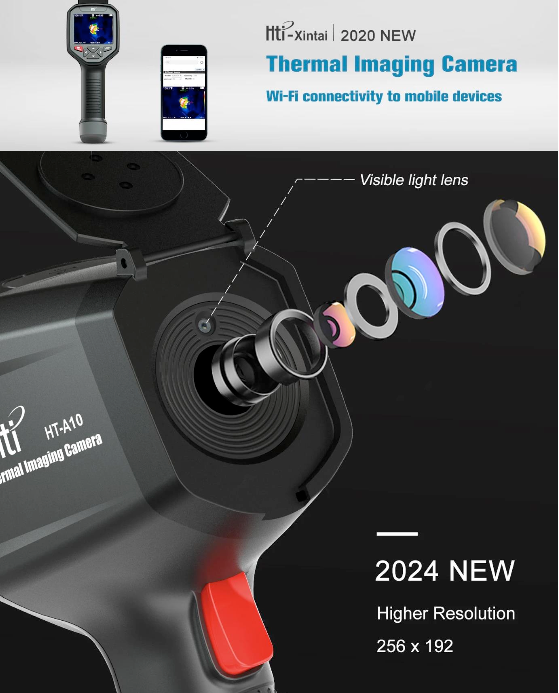

- High-Resolution Infrared Imaging: The HT-A10 features a 256x192 infrared resolution, providing detailed thermal images for accurate temperature measurements and analysis.

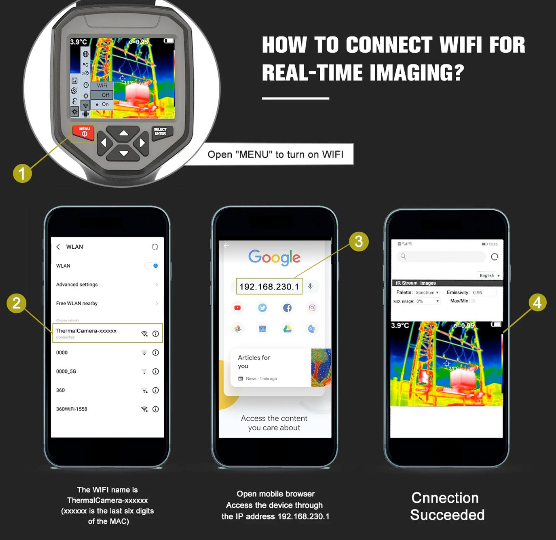

- WIFI Connectivity: Connect your HT-A10 to your smartphone, tablet, or computer via WIFI for real-time image streaming, data transfer, and remote monitoring.
- Long Battery Life:The built-in rechargeable lithium-ion battery offers up to 4 hours of continuous use, ensuring uninterrupted operation during extended inspections.
- Auto Temperature Measurement: The HT-A10 automatically measures temperature in real-time, making it easy to identify hot or cold spots and potential issues.

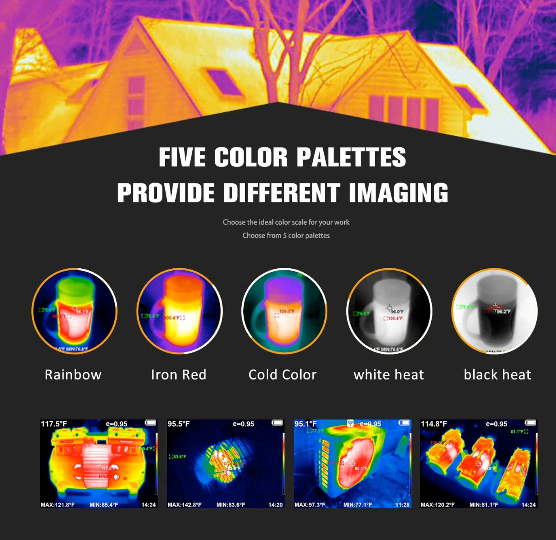

- Multiple Color Palettes:Choose from five different color palettes to visualize temperature variations in a way that best suits your needs.
Specifications:

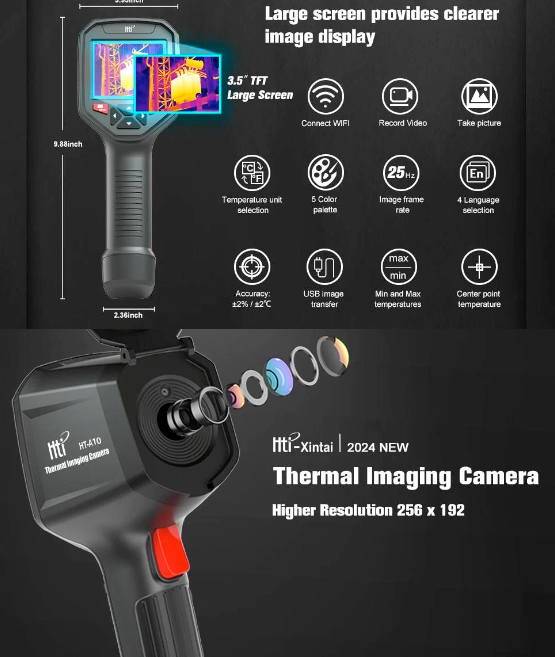

- Display screen: 3.5-inch full-view TFT display
- Infrared image resolution: 256x192
- Temperature measurement range: -20℃ to 550℃
- Measurement accuracy: ±2℃ or ±2% (for -15℃ to 550℃), ±4℃ (for -20℃ to -15℃)
- Field angle: 56°×42°
- Focus length: 3.2mm
- NETD: ≤50mK @25℃,@F/1.0
- Frame rate of thermal images: 25Hz
- Focus mode: Fixed
- Wavelength coverage: 8-14um
- Emissivity: Adjustable from 0.01 to 1.00
- Color palette: Rainbow, iron, cold color, white hot, black hot
- LCD resolution: 640X480
- Storage Image/Video Format: JPG/MP4
- Storage capacity: Built-in 8G (Actually available 6.6G)
- USB: Type-C USB
- Power supply: Built-in chargeable 26650 battery
- Working time: ≥4 hours
- Setting command: Unit、language、date、time、information
- Language: English、Chinese、Italian、German
- Automatic power-off time: Selectable: 5 minutes/20 minutes/not power off automatically

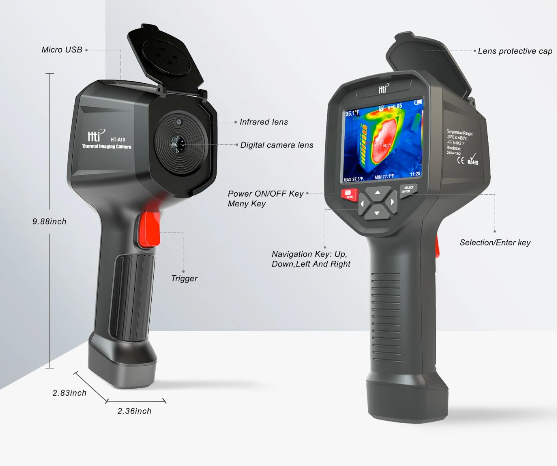

- Product size: 255.4mm×122.1mm×97.2mm
- Product weight: 588g
- Work temperature: 0℃to 45℃
- Storage temperature: -20℃ to 60℃
- Relative humidity: < 85%RH
The HTI HT-A10 Thermal Imager is a powerful and versatile tool that offers exceptional thermal imaging capabilities. With its high resolution, WIFI connectivity, and long battery life, the HT-A10 is ideal for a wide range of applications, including industrial inspections, building surveys, and outdoor activities. If you're looking for a reliable and feature-rich thermal imager, the HT-A10 is an excellent choice.
Specification
| Item | Value | |
|---|---|---|
| Place of Origin | China(Guangdong) | |
| Brand Name | HTI | |
| Model Number | HT-A10 | |
| Display screen | 3.5-inch full-view TFT display | |
| Infrared image resolution | 256x192 | |
| Temperature measurement range | -20℃ to 550℃ (-4°F to 1022°F) | |
| Measurement accuracy | -15℃ to 550℃ ±2℃ or ±2%; -20℃ to -15℃ ±4℃ | |
| Field angle | 56°x42° | |
| Focus length | 3.2mm | |
| NETD | ≤50mK @25℃,@F/1.0 | |
| Frame rate of thermal images | 25Hz | |
| Focus mode | Fixed | |
| Wavelength coverage | 8-14um | |
