Diffused sillicon pressure sensor PM242

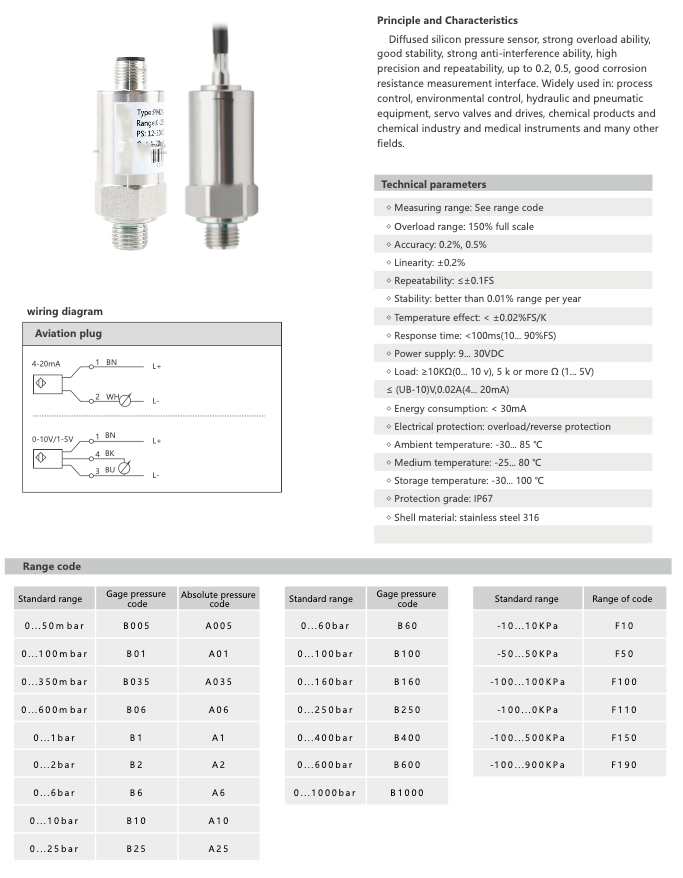

Principle and Characteristics

Diffused silicon pressure sensor, strong overload ability, good stability, strong anti-interference ability, high precision and repeatability, up to 0.2, 0.5, good corrosion resistance measurement interface. Widely used in: process control, environmental control, hydraulic and pneumatic equipment, servo valves and drives, chemical products and chemical industry and medical instruments and many other fields.

Technical parameters

Measuring range: See range code
Overload range: 150% full scale
Accuracy: 0.2%, 0.5%
Linearity: ±0.2%
Repeatability: s±0.1FS
Stability: better than 0.01% range per year
Temperature effect: < ±0.02% FS/K
Response time: < 100ms (10...90%FS)
Power supply: 9... 30VDC
Load: ≥10K (0... 10 v), 5 k or more (1... 5V) ≤ (UB-10)V,0.02A(4... 20mA)
Energy consumption: < 30mA
Electrical protection: overload/reverse protection
Ambient temperature: -30... 85 °C
Medium temperature: -25... 80 °C
Storage temperature: -30... 100 °C
Protection grade: IP67
Shell material: stainless steel 316

Range code

Standard range	Gage pressure code	Absolute pressure code
0...50m bar	B005	A005
0...100m bar	B01	A01
0...350m bar	B035	A035
0...600m bar	B06	A06
0...1 bar	B1	A1
0...2 bar	B2	A2
0...6 bar	B6	A6
0...10 bar	B10	A10
0...25 bar	B25	A25

Standard range	Gage pressure code
0...60 bar	B60
0...100 bar	B100
0...160 bar	B160
0...250 bar	B250
0...400 bar	B400
0...600 bar	B600
0...1000 bar	B1000

Standard range	Range of code
-10...10KPa	F10
-50...50KPa	F50
-100...100KPa	F100
-100...0KPa	F110
-100...500KPa	F150
-100...900KPa	F190

Selection table

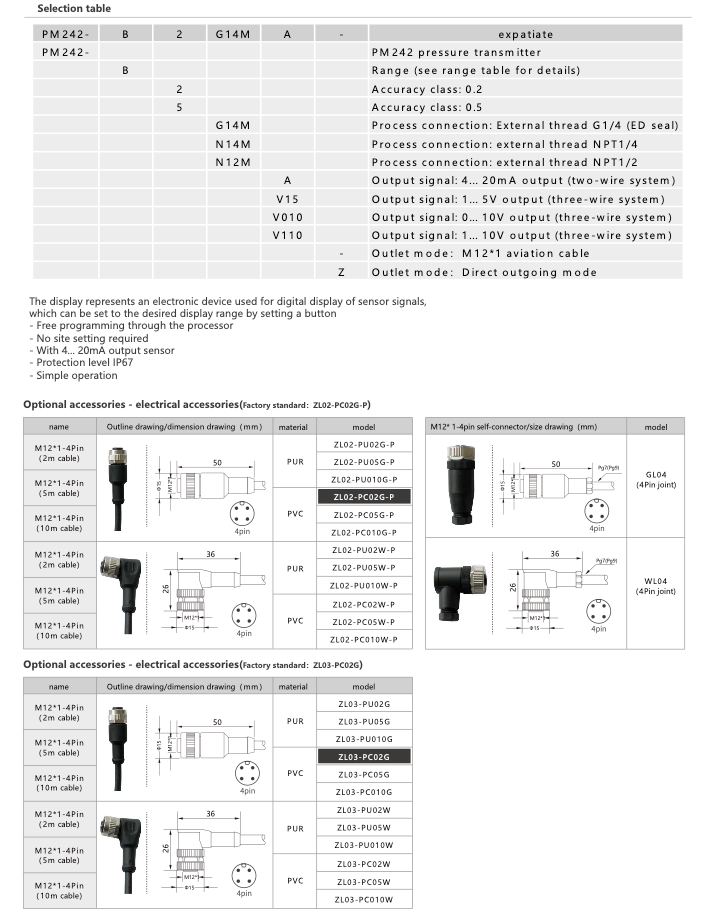

PM242-	B	2	G14M	A	-	expatiate
PM242-						PM242 pressure transmitter
	B					Range(see range table for details)
		2				Accuracy class: 0.2
		5				Accuracy class: 0.5
			G14M			Process connection:External thread G1/4 (ED seal)
			N14M			Process connection:External thread NPT1/4
			N12M			Process connection:External thread NPT1/2
				A		Output signal:4...20m A output(two-wire system)
				V15		Output signal:1...5V output(three-wire system)
				V010		Output signal:0...10V output(three-wire system)
				V110		Output signal:1...10V output(three-wire system)

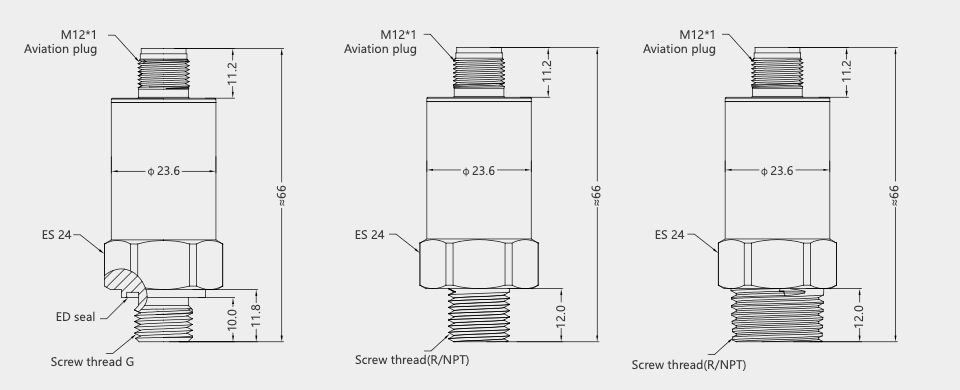

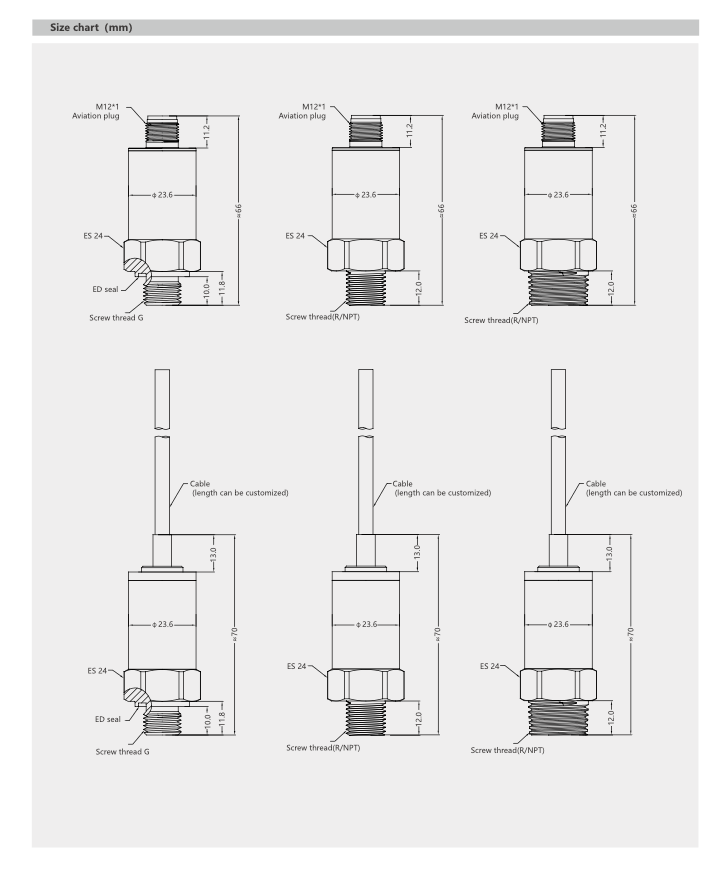

					-	Outlet mode： M 12*1 aviation cable

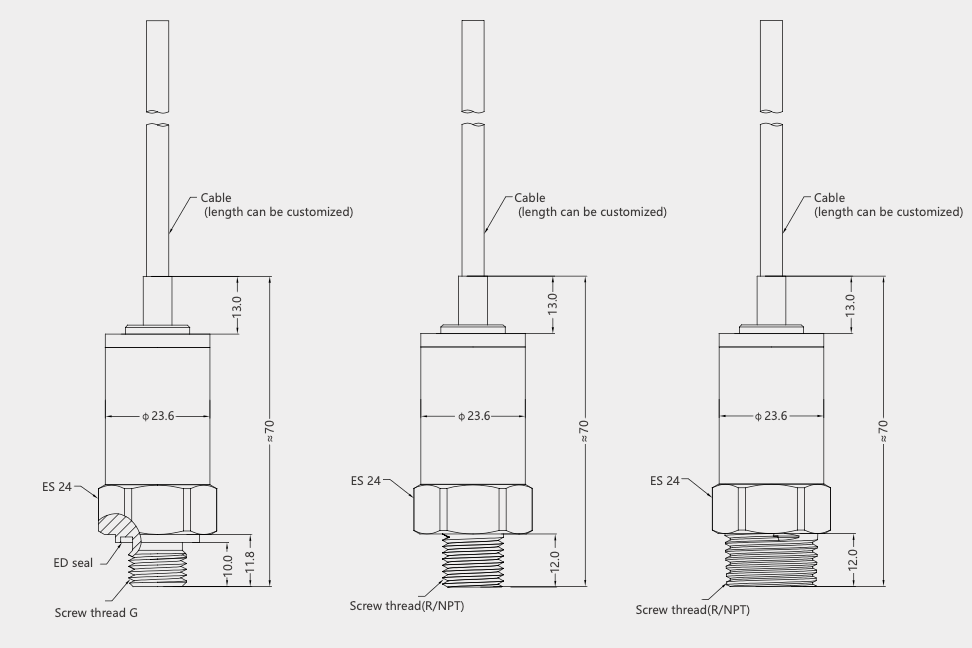

					Z	Outlet mode： Direct outgoing mode

The display represents an electronic device used for digital display of sensor signals, which can be set to the desired display range by setting a button

Free programming through the processor
No site setting required
With 4... 20mA output sensor
Protection level IP67
Simple operation

Electronic Digital Display Pressure Sensor PS500

Principle structure

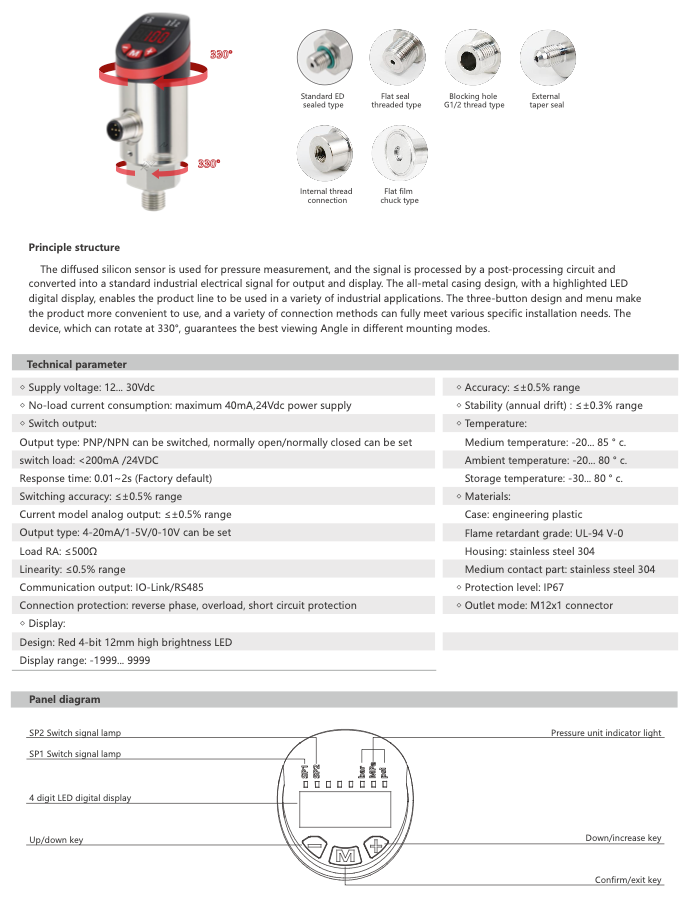

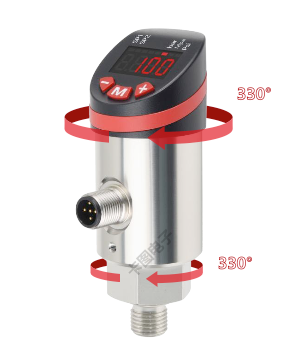

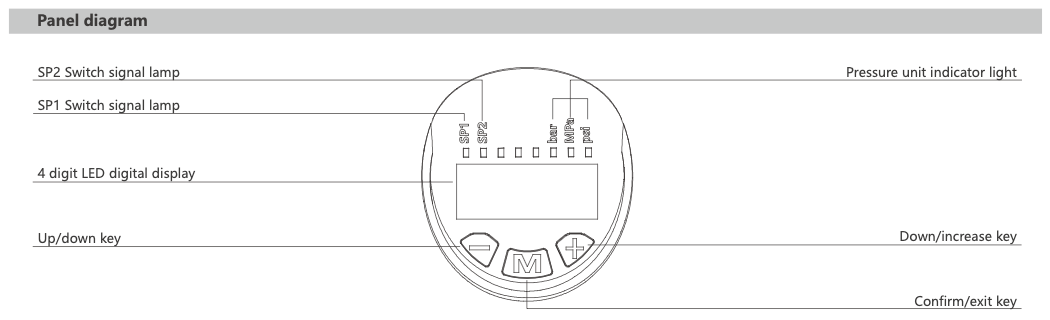

The diffused silicon sensor is used for pressure measurement, and the signal is processed by a post-processing circuit and converted into a standard industrial electrical signal for output and display. The all-metal casing design, with a highlighted LED digital display, enables the product line to be used in a variety of industrial applications. The three-button design and menu make the product more convenient to use, and a variety of connection methods can fully meet various specific installation needs. The device, which can rotate at 330°, guarantees the best viewing Angle in different mounting modes.

Technical parameters

Supply voltage: 12... 30Vdc
Switch output:
Output type: PNP/NPN can be switched, normally open/normally closed can be set
switch load: <200mA /24VDC
Response time: 0.01~2s (Factory default)
Switching accuracy: ≤±0.5% range
Current model analog output: ≤±0.5% range
Output type: 4-20mA/1-5V/0-10V can be set
Load RA: ≤500Ω
Linearity: ≤0.5% range
Communication output: IO-Link/RS485
Connection protection: reverse phase, overload, short circuit protection
Display:
Design: Red 4-bit 12mm high brightness LED
Display range: -1999... 9999
Accuracy: ≤±0.5% range
Stability (annual drift) : ≤±0.3% range
Temperature:
Medium temperature: -20... 85 ° c.
Ambient temperature: -20... 80 ° c.
Storage temperature: -30... 80 ° c.
Materials:
Case: engineering plastic
Flame retardant grade: UL-94 V-0
Housing: stainless steel 304
Medium contact part: stainless steel 304
Protection level: IP67

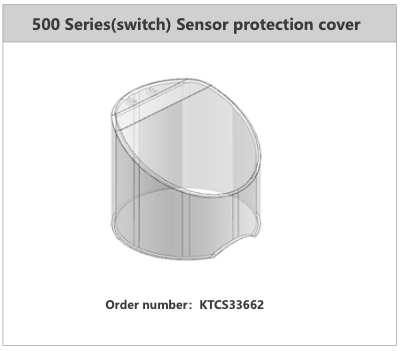

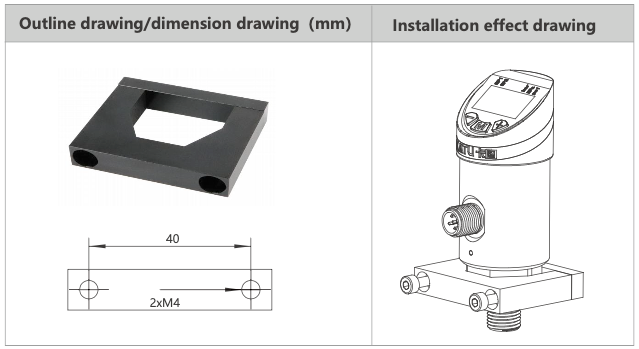

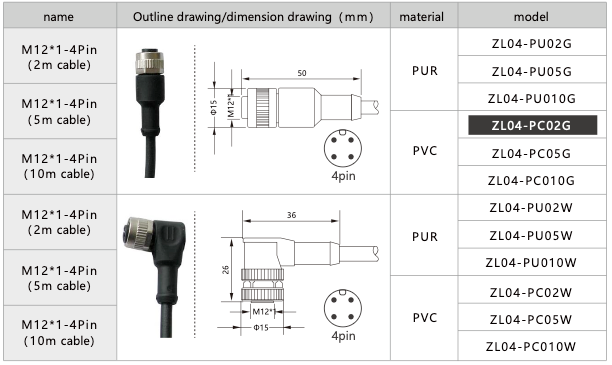

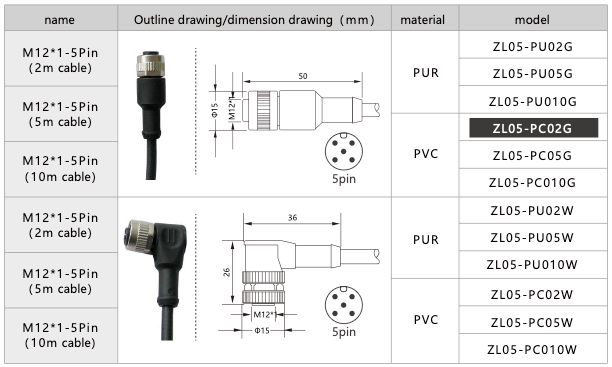

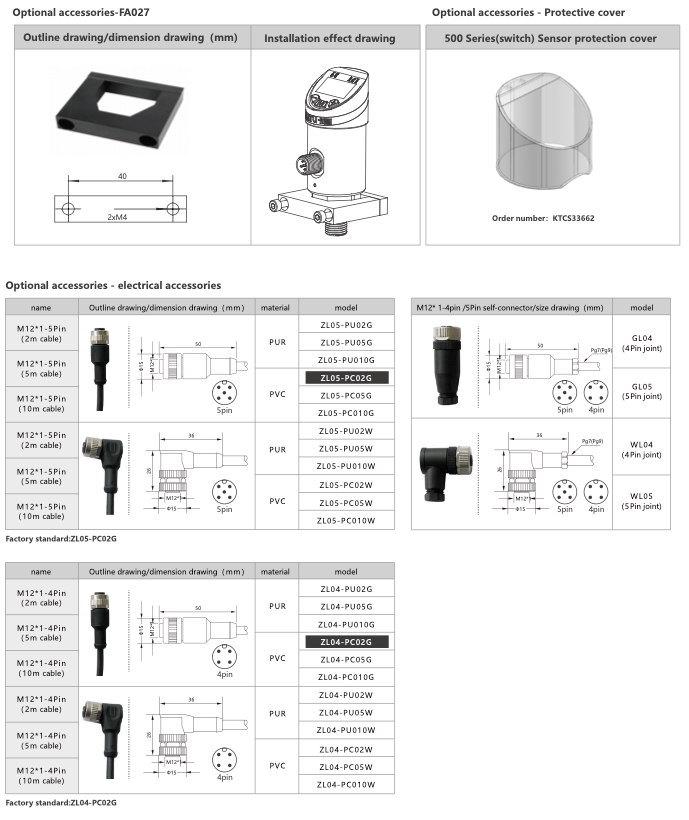

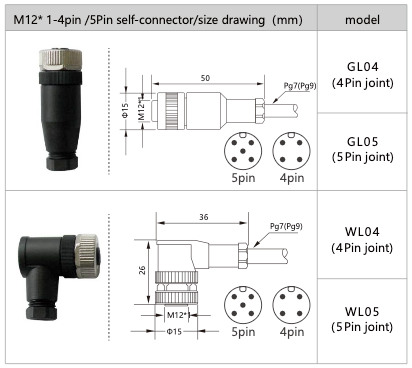

Outlet mode: M12x1 connector

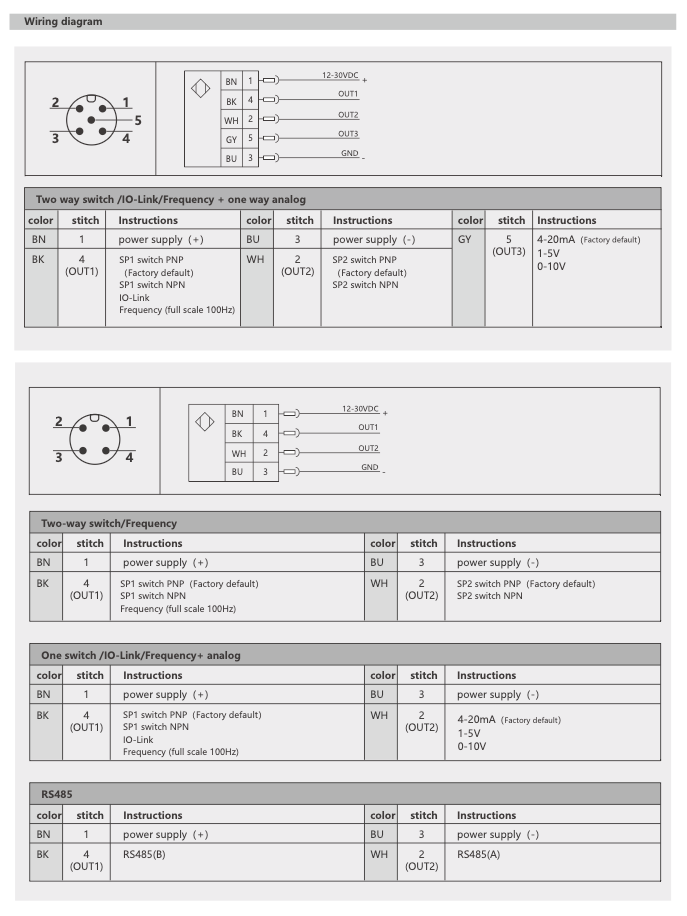

Wiring diagram

Two way switch / IO-Link / Frequency + one way analog
Color	Stitch	Instructions	Color	Stitch	Instructions	Color	Stitch	Instructions
BN	1	Power supply (+)	BU	3	Power supply (−)	GY	5(OUT3)	4-20mA（Factory default） 1-5V 0-10V
BK	4 (OUT1)	SP1 switch PNP (Factory default) SP1 switch NPN IO-Link Frequency (full scale 100Hz)	WH	2 (OUT2)	SP2 switch PNP (Factory default) SP2 switch NPN

Two-way switch / Frequency
Color	Stitch	Instructions	Color	Stitch	Instructions
BN	1	Power supply (+)	BU	3	Power supply (−)
BK	4 (OUT1)	SP1 switch PNP (Factory default) SP1 switch NPN Frequency (full scale 100Hz)	WH	2 (OUT2)	SP2 switch PNP (Factory default) SP2 switch NPN

One switch / IO-Link / Frequency + analog
Color	Stitch	Instructions	Color	Stitch	Instructions
BN	1	Power supply (+)	BU	3	Power supply (−)
BK	4 (OUT1)	SP1 switch PNP (Factory default) SP1 switch NPN IO-Link Frequency (full scale 100Hz)	WH	2 (OUT2)	4–20mA (Factory default) 1–5V 0–10V

RS485
Color	Stitch	Instructions	Color	Stitch	Instructions
BN	1	Power supply (+)	BU	3	Power supply (−)
BK	4 (OUT1)	RS485(B)	WH	2 (OUT2)	RS485(A)

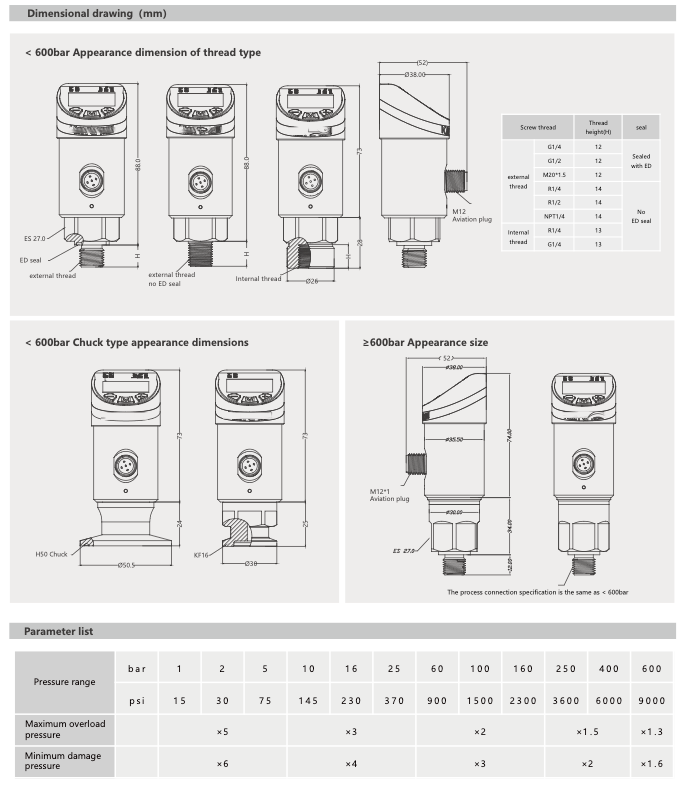

Pressure Range (bar)	Pressure Range (psi)	Maximum Overload Pressure	Minimum Damage Pressure
1	15	x5	x6
2	30	x5	x6
5	75	x5	x6
10	145	x3	x4
16	230	x3	x4
25	370	x3	x4
60	900	x2	x3
100	1500	x2	x3
160	2300	x2	x3
250	3600	x1.5	x2
400	6000	x1.5	x2
600	9000	x1.3	x1.6

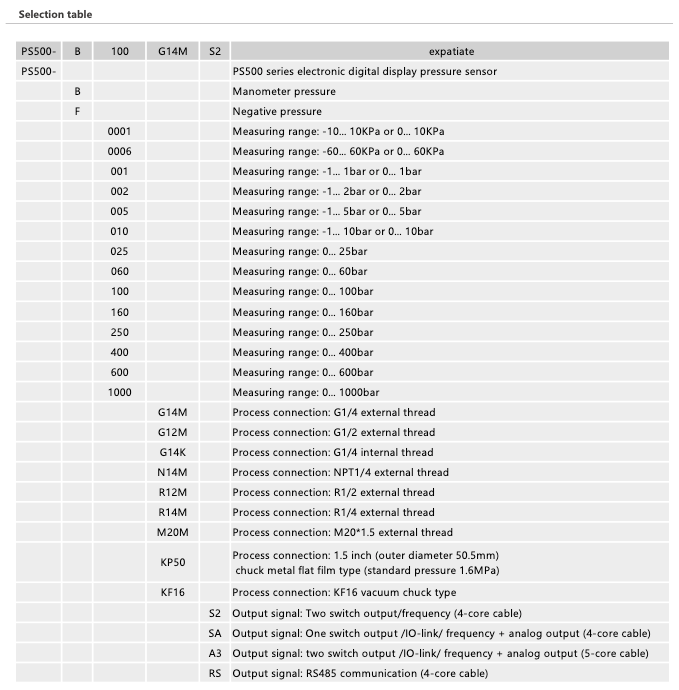

Selection table

PS500-	B	100	G14M	S2	expatiate
PM500-					PS500 series electronic digital display pressure sensor
	B				Manometer pressure
	F				Negative pressure
		0001			Measuring range: -10... 10KPa or 0... 10KPa
		0006			Measuring range: -60... 60KPa or 0... 60KPa
		001			Measuring range: -1... 1bar or 0... 1bar
		002			Measuring range: -1... 2bar or 0... 2bar
		005			Measuring range: -1... 5bar or 0... 5bar
		010			Measuring range: -1... 10bar or 0... 10bar
		025			Measuring range: 0... 25bar
		060			Measuring range: 0... 60bar
		100			Measuring range: 0... 100bar
		160			Measuring range: 0... 160bar
		250			Measuring range: 0... 250bar
		400			Measuring range: 0... 400bar
		600			Measuring range: 0... 600bar
		1000			Measuring range: 0... 1000bar

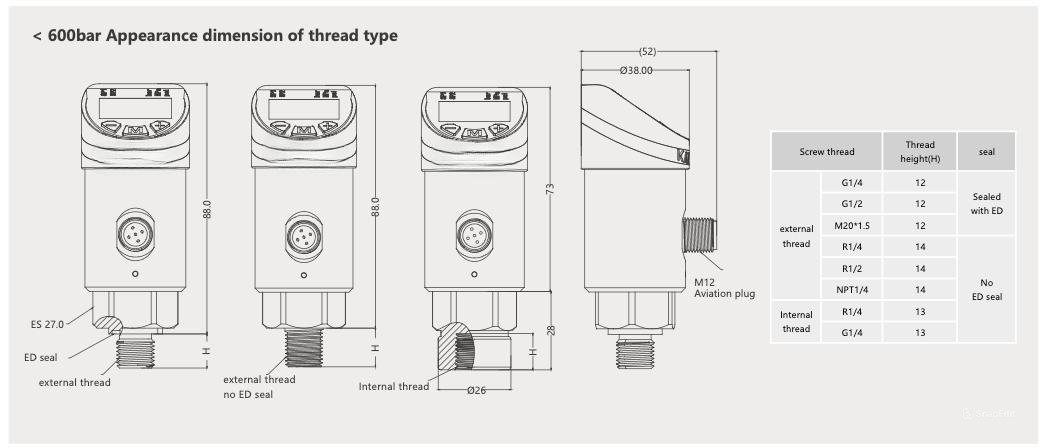

			G14M		Process connection: G1/4 external thread
			G12M		Process connection: G1/2 external thread
			G14K		Process connection: G1/4 internal thread
			N14M		Process connection: NPT1/4 external thread
			R12M		Process connection: R1/2 external thread
			R14M		Process connection: R1/4 external thread
			M20M		Process connection: M20*1.5 external thread

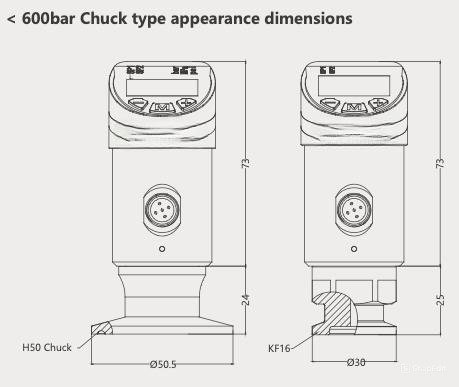

			KP50		Process connection: 1.5 inch (outer diameter 50.5mm), chuck metal flat film type (standard pressure 1.6MPa)
			KF16		Process connection: KF16 vacuum chuck type
				S2	Output signal: Two switch output/frequency (4-core cable)
				SA	Output signal: One switch output /IO-link/ frequency + analog output (4-core cable)
				A3	Output signal: two switch output /IO-link/ frequency + analog output (5-core cable)
				RS	Output signal: RS485 communication (4-core cable)
