Introduction
MW5002 industrial code reader can read different types of 1-dimensional and 2-dimensional codes, and its max. reading speed reaches 62 codes/sec (network device) respectively. It adopts deep learning algorithm to process images with good robustness, and can recognize various codes.
Key Feature
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
Applicable Industry
Consumer electronics, food and drug, semiconductor, new energy, etc.
Available Model
- Red light source with network interface: MW5002
Specification
| Model | MW5002 | |
|---|---|---|
| Performance | ||
| Symbologies |
1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13,
UPCA,
UPCE 2-dimensional codes: QR Code, Data Matrix |
|
| Max. frame rate | 60 fps | |
| Max. reading speed | Network interface: 62 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 6.9 µm × 6.9 µm | |
| Sensor size | 1/2.9" | |
| Resolution | 704 × 540 | |
| Exposure time | 16 µs to 1 sec | |
| Gain | 0 dB to 15 dB | |
| Mono/color | Mono | |
| Communication protocol | Network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins SmartSDK, | |
| Electrical feature | ||
| Data interface | Network interface: Fast Ethernet (100 Mbit/s) | |
| Digital I/O |
Network interface: 17-pin M12 connector provides power and I/O, including non-isolated input × 1
(Line 2), non-isolated output × 1 (Line 3), bi-directional non-isolated I/O × 2 (Line 0/1), and RS-
232 × 1. Device trigger via pressing button on side supported. 17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported. |
|
| Power supply | Network interface: 12 VDC to 24 VDC | |
| Max. power consumption | Network interface: Approx. 4 W @ 24 VDC | |
| Mechanical | ||
| Focal length | 6.72 mm | |
| Lens mount | M10-mount, adjusting focus manually supported | |
| Working distance | 40 mm to 120 mm | |
| Ambient illumination | 0 lux to 50000 lux | |
| Light source | Red | |
| Aiming system | Green LED | |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) | |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") | |
| Weight | Approx. 160 g (0.4 lb.) | |
| Ingress protection | IP65 | |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|
| Humidity | 20% to 95% RH, non-condensing | |
| General | ||
| Client software | IDMVS | |
| Certification | CE, RoHS, KC | |

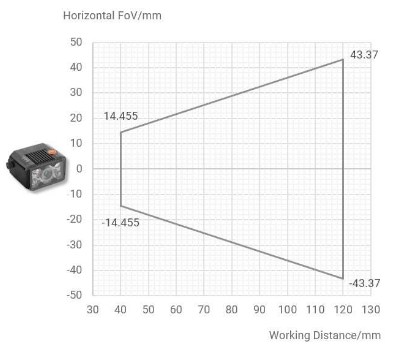

Detection Range
| MW5001 (Unit: mm) | |||||
|---|---|---|---|---|---|
| Working Distance | FoV H × H |
1D Min. Resolution(mm) | 2D Min. Resolution(mm) | ||
| 40 | 28.91 × 22.18 | 0.041 | 0.123 | ||
| 80 | 57.83 × 44.36 | 0.082 | 0.0246 | ||
| 120 | 86.74 × 66.54 | 0.123 | 0.370 | ||

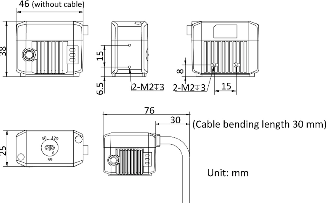

Dimension
Note
- 1D Min. Resolution (mm)*: Field of view (long side) / resolution (long side) × number of pixels in the minimum bar width (number of pixels in the minimum bar width = 1)
- 2D Min. Resolution (mm)△: Field of view (long side) / resolution (long side) × number of pixels in the side length of minimum module unit (number of pixels in the side length of minimum module unit = 3)
- The device is a non-isolated device. Therefore, the device should be powered separated or you can purchase an I/O box for power supply.
- The integrated cable of the device is a static cable by default that cannot be used in moving scene, such as drag chain. Therefore, it is recommended to fix the cable during installation.
