Introduction
MW500X smart code reader can read different types of codes with reading speed up to 84 codes/sec. It adopts mwitrack deep learning algorithm to process images with good robustness, and can recognize various complex codes.
Key Feature
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts IO interfaces for input and output signals.
- Supports multiple communication protocols, including TCP, Serial, FTP, PROFINET, ETHERNET/IP etc.
- Adopts CMOS sensor to acquire image data and provide high-quality image.
- Supports RS-232 serial port and indicators displaying device status.
Applicable Industry
Consumer electronics, food & beverage, automotive pharmaceutical, semiconductor, automobile, etc.
Available Model
- 14.8 mm focal length with mechanical autofocus: MW5001-15M
Specification
| Model | MW5001 | |
|---|---|---|
| Performance | ||
| Symbologies |
1-dimensional codes: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN, MATRIX 25, MSI,
Industrial 25, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix |
|
| Max. frame rate | 60 fps | |
| Max. reading speed | 84 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3.45 µm × 3.45 µm | |
| Sensor size | 1/2.9" | |
| Resolution | 1408 × 1024 | |
| Exposure time | 16 µs to 1 sec | |
| Gain | 0 dB to 40 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, ModBus | |
| Electrical feature | ||
| Data interface | Fast Ethernet | |
| Digital I/O |
17-pin M12 interface provides power supply and I/O, including non-isolated input
(LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported. |
|
| Power supply | 24 VDC | |
| Max. power consumption | 20 W @ 24 VDC (self-light source enabled) | |
| Mechanical | ||
| Focal length | 14.8 mm (0.6") | |
| Lens mount | Mechanical autofocus. | |
| Lens cap | Transparent lens cap. Polarization lens cap is optional. | |
| Light source | Spotlight white light. Spotlight red/blue/IR, and wide-angle white/red/blue light is optional. | |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) | |
| Dimension | 65.2 mm × 65.2 mm × 42 mm (2.6" × 2.6" × 1.7") | |
| Weight | Approx. 250 g (0.6 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|
| Humidity | 20% to 95% RH, non-condensing | |
| General | ||
| Client software | IDMVS | |
| Certification | CE, FCC, RoHS, KC | |

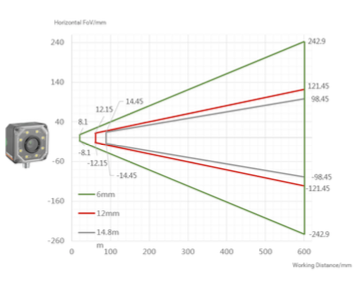

Detection Range
| MW5001 (Unit: mm) | |||||
|---|---|---|---|---|---|
| Lens Focal Length | Working Distance | FoV H × H |
1D Single Pixel Accuracy | 2D Single Pixel Accuracy | |
| 14.8 | 88 | 28.9 × 21 | 0.021 | 0.062 | |
| 100 | 32.8 × 23.9 | 0.023 | 0.070 | ||
| 200 | 65.6 × 47.7 | 0.047 | 0.140 | ||
| 300 | 98.5 × 71.6 | 0.070 | 0.210 | ||
| 400 | 131.3 × 95.5 | 0.093 | 0.280 | ||
| 500 | 164.1 × 119.4 | 0.117 | 0.350 | ||
| 600 | 196.9 × 143.2 | 0.140 | 0.420 | ||
Dimension
