Hand held vibration monitor for motors-pumps-gearboxes
| Item | Value | |
|---|---|---|
| Type | Vibration Analyzer Tester | |
| customized support | OEM | |
| place of origin | China(Guangdong) | |
| power | 1*9V battery | |
| Accuracy | 0.1 | |
| Voltage | Other | |
| Protection Class | none | |
| warranty | No Warranty | |
| brand name | Generic | |
| Application | universal testing | |
| Product name | Digital Vibration Meter GM63B | |
| Application | Construction Industry | |
| Power supply | 1*9V battery | |
| Weight | 200g | |
| Dimension | 70*145*28MM | |
| Certificate | CE | |
| Function | Maximum value hold | |
| Display | LCD backlight | |
| Operation temperature | 0~40degree | |
| GM63B Portable Digital Vibration Analyzer Tester Meter + Temperature | ||
Features:
- LCD display: 3 1/2 digits display
- Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)
- Operation temperature: 0~40

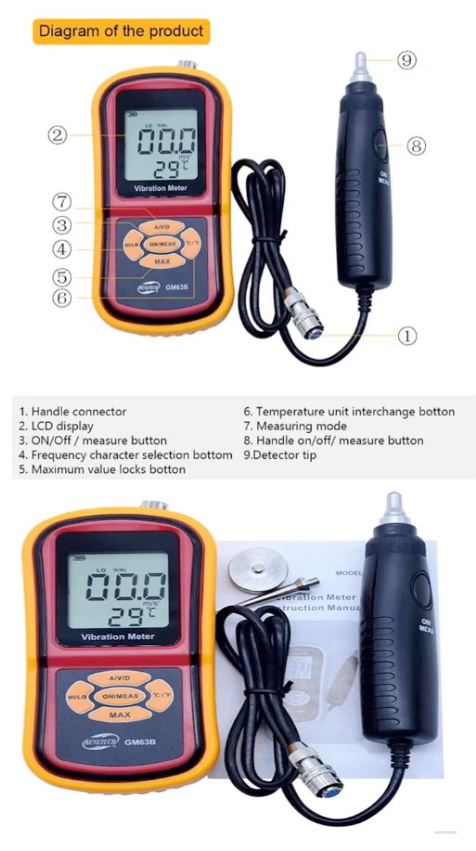

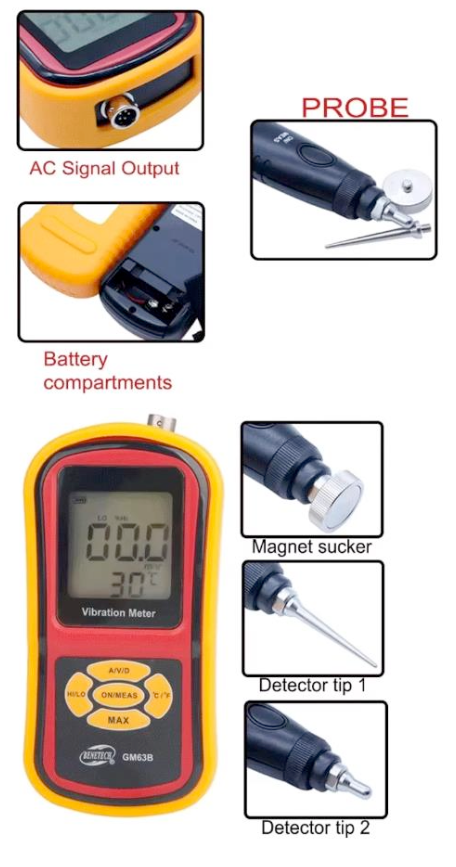

- Equipped two probes (S and L) to adapt the different measurement requirement
- Provides a magnetic probe to fit the condition uneasy hold on by hand
- Maximum value hold function
- Ambient temperature reading
- C/F selection
- Low battery indication
- Auto power off
- LCD backlight display

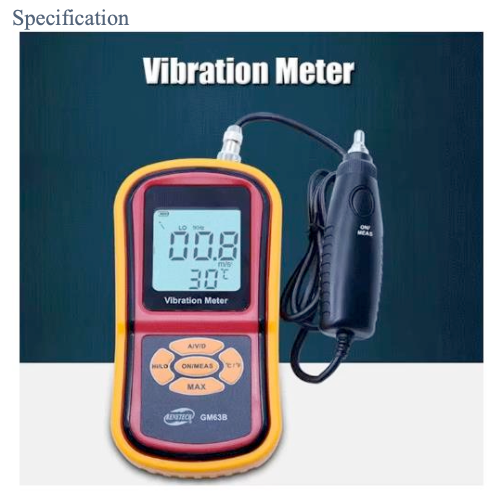

Specifications:
Measuring Range:
- Acceleration: 0.1~199.9m/s²
- Velocity: 0.1~1999.9 m/s Displacement: 0.001~1.999 mm p-p
- Accuracy: ±5%Vibration
- Pickup: Piezoelectric Ceramic Accelerometer (Shear-Type)
- Measuring Frequency:
- Acceleration: 10Hz-1KHz(LO); 10KHz-15KHz (HI)
- Velocity: 10Hz~1KHz (LO)
- Displacement: 10Hz~1KHz (LO)
- LCD Display: 3.5 Digits Display
- Max Hold FunctionTempreture Selection
- Operation Condition: 0-40℃
- Auto Power Off
- LCD Backlight
- Power:9V Battery
- Weight:359g (Including Battery)
- Dimension:150x80x38mm
Product Feature
| Model | GM63A | |
| Display | 3 1/2 digits display | |
| Operation temperature | 0-40 degree | |
| Weight | 200g | |
| Dimension | 70*145*28MM | |
| Vibration pickup | piezoelectric ceramic accelerometer | |
| Acceleration | Range 0.1~199m/s Freq:10Hz~1KHz(LO);1KHz~15KHz(HI) | |
| Velocity | Range 0.1~1999.9m/s Freq: 10Hz~1KHz(LO) | |
| Displacement | Range 0.001~1999mm (p-p) Freq: 10Hz~1KHz(LO) | |
