Introduction
MW205X wired handheld code reader decodes different types of 1D and 2D codes rapidly. With the built-in intelligent code reading algorithm, it can easily decode codes with spots, defects and low contrast ratio, and entry level DPM codes.
Key Feature
- Built-in code reading algorithm for decoding different types of 1D and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Supports communication protocols, including TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, and SmartSDK.
- Easy to replace components.
Applicable Industry
Automotive Industry, Consumer electronics, medical treatment, appliance manufacturing, enterprise and public institutions, etc.
Available Model
- Near distance, red light, with network interface, support industrial protocols: MW2051 - NR
- Near distance, red light, with USB interface: MW2050 - NR
- Standard distance, red light, with network interface, support industrial protocols: MW2051 - SR
- Standard distance, red light, with USB interface: MW2050 - SR
Specification
| Model | MW2050 - NR | MW2050 - SR |
|---|---|---|
| Performance | ||
| Symbologies |
1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
|
| Min. accuracy | 3 mil | 4 mil |
| Sensor type | CMOS | |
| Resolution | 1280 × 1024 | |
| Depth of field* |
Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm |
Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Field of view | Horizontal 40°, vertical 34° | |
| Detection angle | Tilt angle ±60°, skew angle ±60°, rotation angle 360° | |
| Symbol contrast | 20% | |
| Communication protocol | USB interface: SmartSDK, USB (HID/CDC) | |
| Electrical feature | ||
| Data interface | USB interface: USB 2.0, DC terminal | |
| Power supply | USB interface: 5 VDC (USB 2.0), 12 VDC (DC terminal) | |
| Current consumption |
USB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical) |
|
| Mechanical | ||
| Focal length | 4.7 mm | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | Red LED | |
| Aiming system | Cross laser aiming | |
| Prompt | LED indicator, buzzer, vibrator | |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5") | |
| Weight | Approx. 160 g (0.4 lb) | |
| Ingress protection | IP42 | |
| Temperature |
Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| Drop height | 1.8 m | |
| General | ||
| Client software | IDMVS | |
| Certification | CE, KC | |
| *Test condition: Environment temperature = 25 °C (77 °F), ambient illumination = 250 lux filament lamp | ||
Specification
| Model | MW2051 - NR | MW2051 - SR |
|---|---|---|
| Performance | ||
| Symbologies |
1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
|
| Min. accuracy | 3 mil | 4 mil |
| Sensor type | CMOS | |
| Resolution | 1280 × 1024 | |
| Depth of field* |
Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm |
Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Field of view | Horizontal 40°, vertical 34° | |
| Detection angle | Tilt angle ±60°, skew angle ±60°, rotation angle 360° | |
| Symbol contrast | 20% | |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial1 | |
| Electrical feature | ||
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal | |
| Power supply | 12 VDC | |
| Current consumption | 0.5 A (max.), 0.28 A (typical) | |
| Mechanical | ||
| Focal length | 4.7 mm | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | White LED | |
| Aiming system | Cross laser aiming | |
| Prompt | LED indicator, buzzer, vibrator | |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5") | |
| Weight | Approx. 160 g (0.4 lb) | |
| Ingress protection | IP42 | |
| Temperature |
Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| Drop height | 1.8 m | |
| General | ||
| Client software | IDMVS | |
| Certification | CE, KC | |
|
*Test condition: Environment temperature = 25 °C (77 °F), ambient illumination = 250 lux filament lamp. 1Communication protocols including Profinet, EthernetIP, and Modbus are available for the device which supports industrial protocols. |
||

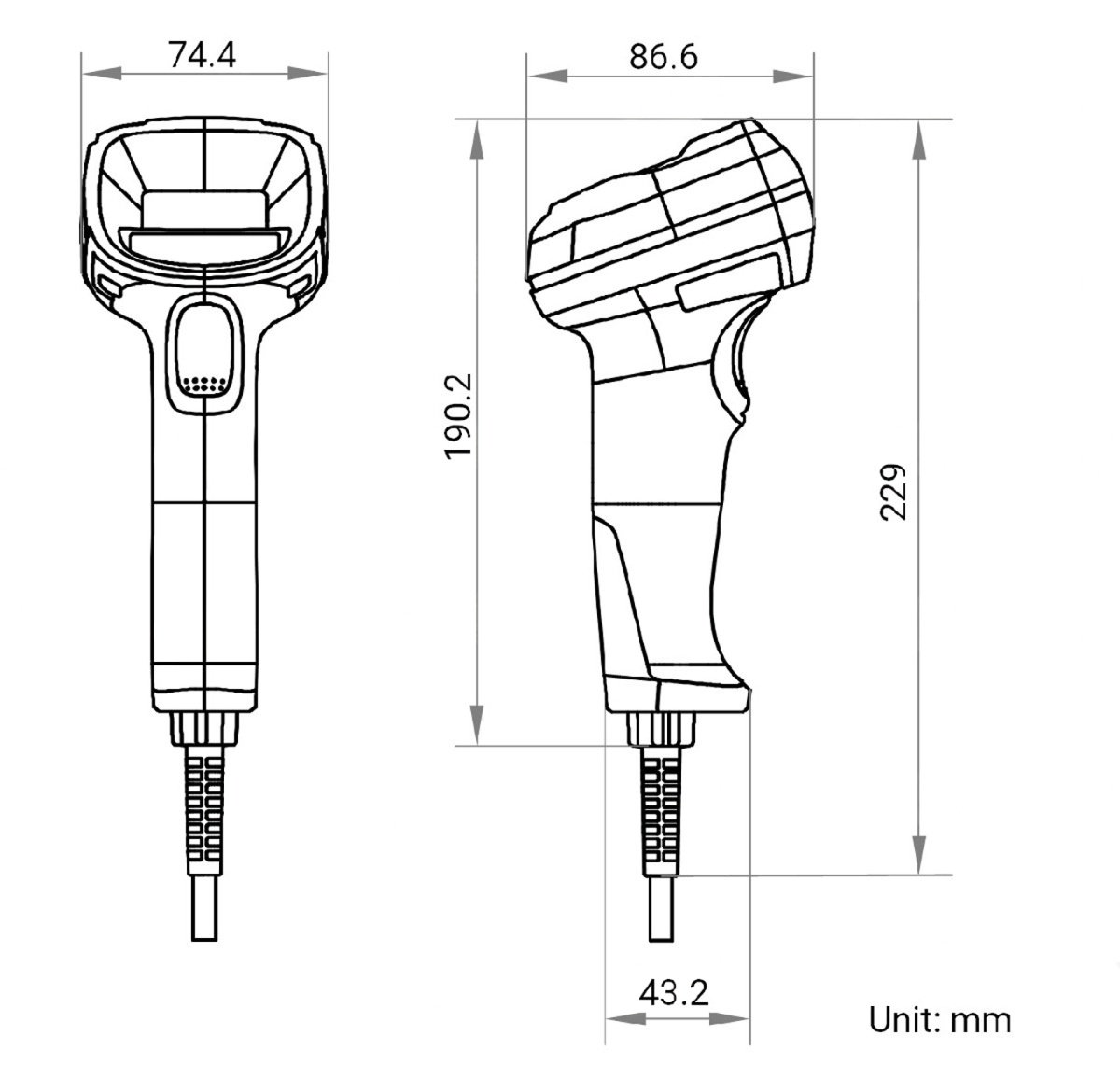

Dimension
