Introduction

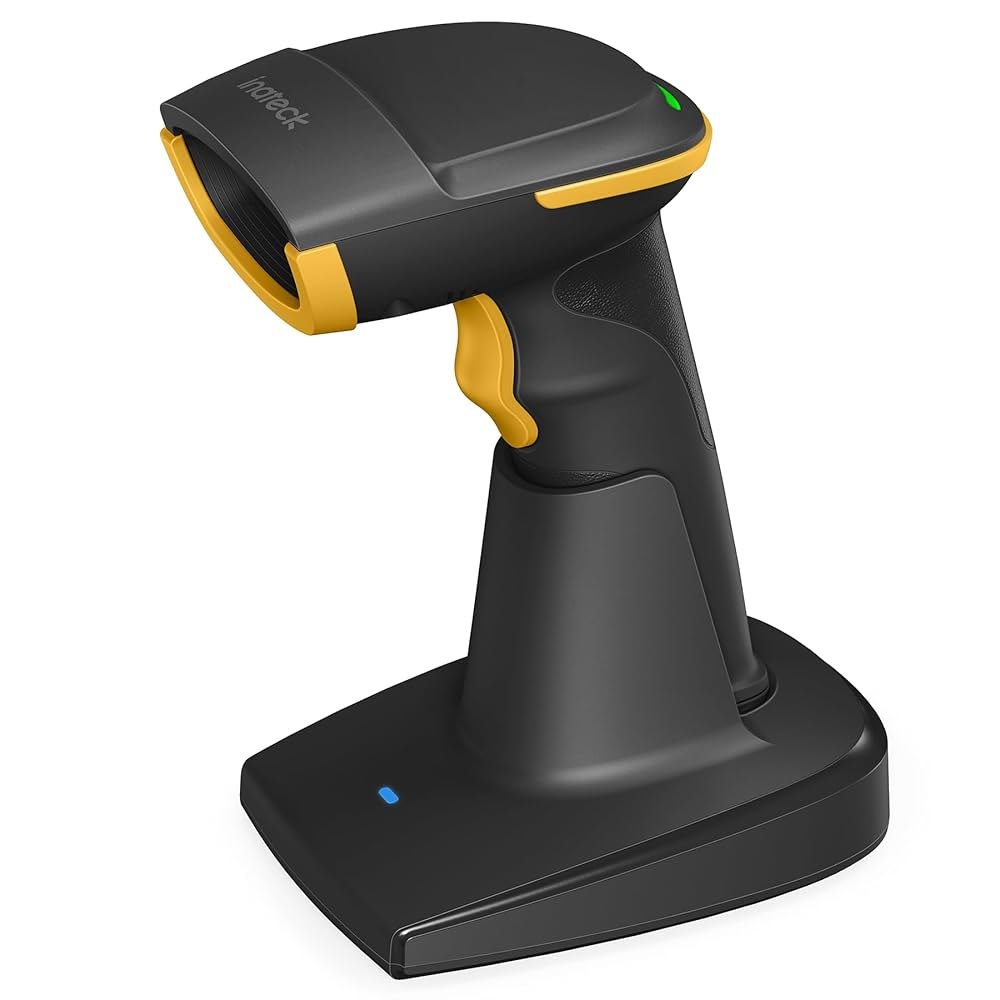

MW2053 wireless handheld code reader decodes different types of 1D and 2D codes rapidly. With the built-in intelligent code reading algorithm, it can easily decoding codes with spots, defects and low contrast ratio, and entry level DPM codes. With smart bases, the code reader can realize charging and data communication.
Key Feature
- Built-in code reading algorithm for decoding different types of 1D and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
- With smart bases, parameter configuration and device management via IDMVS client software are supported.
Applicable Industry
Automotive Industry ,Consumer electronics, etc.
Available Model
- Near distance, red light, with network charging base set: MW2053-NR
- Near distance, red light, with network charging base set, support industrial protocols: MW2053-NR-C
- Near distance, red light, with USB charging base set:MW2053-NR-U
- Standard distance, red light, with network charging base set: MW2053-SR
- Standard distance, red light, with network charging base set, support industrial protocols: MW2053-SR-C
- Standard distance, red light, with USB charging base set: MW20530-SR-U
Specification
| Model | MW2053 - NR | MW2053 - SR |
|---|---|---|
| Performance | ||
| Symbologies |
1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
|
| Min. accuracy | 3 mil | 4 mil |
| Sensor type | CMOS | |
| Resolution | 1280 × 1024 | |
| Depth of field* |
Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm |
Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Field of view | Horizontal 40°, vertical 34° | |
| Detection angle | Tilt angle ±60°, skew angle ±60°, rotation angle 360° | |
| Symbol contrast | 20% | |
| Wireless communication | ||
| Communication mode | Bluetooth BT 5.0, BLE | |
| Wireless range | 80 m (open range) | |
| Electrical feature | ||
| Battery | 3150 mAh | |
| Charging time | Shutdown mode: 12 VDC (12 V, 2 A): 3.5 h | |
| Endurance | 13 h (interval scanning, once in 2 seconds) | |
| Mechanical | ||
| Focal length | 4.7 mm | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | Red LED | |
| Aiming system | Cross laser aiming | |
| Prompt | LED indicator, buzzer, vibrator | |
| Dimension | 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") | |
| Weight | Approx. 230 g (0.5 lb.) | |
| Ingress protection | IP42 | |
| Temperature |
Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| Drop height | 1.8 m | |
| General | ||
| Client software | IDMVS | |
| Certification | CE, KC | |
| Smart Base | ||
| Model | MW2053-BASE | |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial, Bluetooth | |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal | |
| Power supply | 12 VDC | |
| Current consumption | 0.7 A (max.), 0.06 A (during standby) | |
| Charging time | 4 h | |
| Dimension | 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3") | |
| Weight | Approx. 180 g (0.4 lb.) | |
| Ingress protection | IP40 | |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| *Test condition: Environment temperature=25 °C (77 °F), ambient illumination=250 lux filament lamp. | ||
Specification
| Model | MW2053 - NR - U | MW2053 - SR - U |
|---|---|---|
| Performance | ||
| Symbologies |
1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
|
| Min. accuracy | 3 mil | 4 mil |
| Sensor type | CMOS | |
| Resolution | 1280 × 1024 | |
| Depth of field* |
Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm |
Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Field of view | Horizontal 40°, vertical 34° | |
| Detection angle | Tilt angle ±60°, skew angle ±60°, rotation angle 360° | |
| Symbol contrast | 20% | |
| Wireless communication | ||
| Communication mode | Bluetooth BT 5.0, BLE | |
| Wireless range | 80 m (open range) | |
| Electrical feature | ||
| Battery | 3150 mAh | |
| Charging time | Shutdown mode: USB 2.0 (5 V, 500 mA): 8.5 h, USB 3.0 (5 V, 1 A): 8.5 h, 12 VDC (12 V, 2 A): 3.5 H | |
| Endurance | 13 h (interval scanning, once in 2 seconds) | |
| Mechanical | ||
| Focal length | 4.7 mm | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | Red LED | |
| Aiming system | Cross laser aiming | |
| Prompt | LED indicator, buzzer, vibrator | |
| Dimension | 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") | |
| Weight | Approx. 230 g (0.5 lb.) | |
| Ingress protection | IP42 | |
| Temperature |
Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| Drop height | 1.8 m | |
| General | ||
| Client software | IDMVS | |
| Certification | CE, KC | |
| Smart Base | ||
| Model | MW2053-BASE/U | |
| Communication protocol | SmartSDK, USB (HID/CDC), Bluetooth | |
| Data interface | USB 2.0, DC terminal1 | |
| Power supply | USB 2.0: 5 VDC DC terminal: 12 VDC |
|
| Current consumption | USB 2.0: 1.5 A (max.), 0.14 A (during standby) DC terminal: 0.7 A (max.), 0.06 A (during standby) |
|
| Charging time | USB 2.0: 8.5 h | |
| Dimension | 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3") | |
| Weight | Approx. 180 g (0.4 lb.) | |
| Ingress protection | IP40 | |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| *Test condition: Environment temperature=25 °C (77 °F), ambient illumination=250 lux filament lamp. 1 The device can be powered via USB or DC terminal. Power supply via DC terminal is recommended. | ||
Specification
| Model | MW2053 - NR - C | MW2053 - SR - C |
|---|---|---|
| Performance | ||
| Symbologies |
1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
|
| Min. accuracy | 3 mil | 4 mil |
| Sensor type | CMOS | |
| Resolution | 1280 × 1024 | |
| Depth of field* |
Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm |
Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Field of view | Horizontal 40°, vertical 34° | |
| Detection angle | Tilt angle ±60°, skew angle ±60°, rotation angle 360° | |
| Symbol contrast | 20% | |
| Wireless communication | ||
| Communication mode | Bluetooth BT 5.0, BLE | |
| Wireless range | 80 m (open range) | |
| Electrical feature | ||
| Battery | 3150 mAh | |
| Charging time | Shutdown mode: 12 VDC (12 V, 2 A): 3.5 h | |
| Endurance | 13 h (interval scanning, once in 2 seconds) | |
| Mechanical | ||
| Focal length | 4.7 mm | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | Red LED | |
| Aiming system | Cross laser aiming | |
| Prompt | LED indicator, buzzer, vibrator | |
| Dimension | 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") | |
| Weight | Approx. 230 g (0.5 lb.) | |
| Ingress protection | IP42 | |
| Temperature |
Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| Drop height | 1.8 m | |
| General | ||
| Client software | IDMVS | |
| Certification | CE, KC | |
| Smart Base | ||
| Model | MW2053/SBASE/C | |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth1 | |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal | |
| Power supply | 12 VDC | |
| Current consumption | 0.7 A (max.), 0.06 A (during standby) | |
| Charging time | 4 h | |
| Dimension | 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3") | |
| Weight | Approx. 180 g (0.4 lb.) | |
| Ingress protection | IP40 | |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
|
| Humidity | 20% RH to 80% RH (no condensation) | |
| *Test condition: Environment temperature=25 °C (77 °F), ambient illumination=250 lux filament lamp. 1Communication protocols including Profinet, EthernetIP, and Modbus are available for the device which supports industrial protocols. | ||
Accessories
- Smart base with USB interface: MW2053/BASE/U
- Smart base with network interface: MW2053/BASE/C

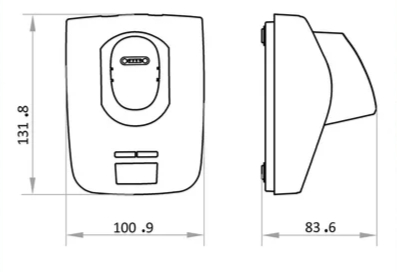

Dimension
