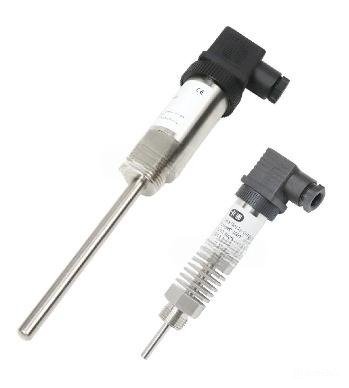

Integrated temperature transmitter TM110

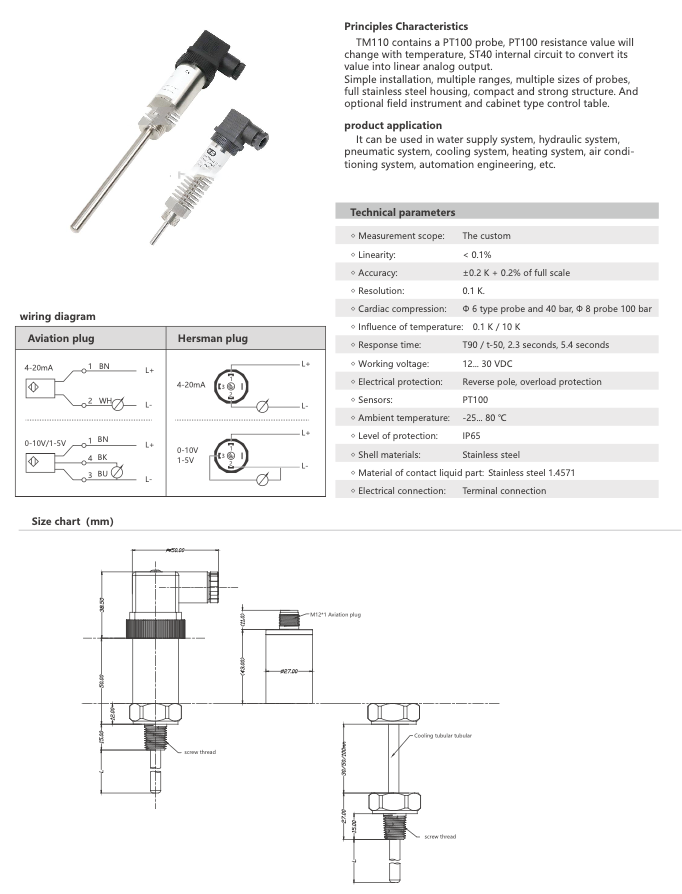

Principle and Characteristics
TM110 contains a PT100 probe, PT100 resistance value will change with temperature, ST40 internal circuit to convert its value into linear analog output. Simple installation, multiple ranges, multiple sizes of probes, full stainless steel housing, compact and strong structure. And optional field instrument and cabinet type control table.
product application
It can be used in water supply system, hydraulic system, pneumatic system, cooling system, heating system, air condi- tioning system, automation engineering, etc.
Technical parameters
- Measuring range: The custom
- Linearity: < 0.1%
- Accuracy: ±0.2 K + 0.2% of full scale
- Resolution: 0.1 K
- Cardiac compression: Ф 6 type probe and 40 bar, Ф 8 probe 100 bar
- Influence of temperature: 0.1 K / 10 K
- Response time:T90 / t-50, 2.3 seconds, 5.4 seconds
- Working Voltage: 12... 30 VDC
- Electrical Protection: Reverse pole, overload protection
- Sensors: PT100
- Ambient temperature: -25... 80 c
- Level of protection: IP65
- Shell materials: Stainless steel
- Material of contact liquid part: Stainless steel 1.4571
- Electrical connenction: Terminal connection

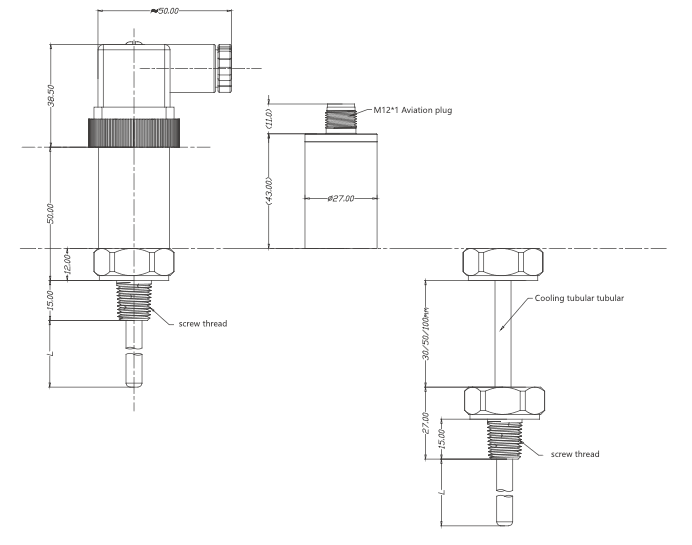

Size Chart (mm)

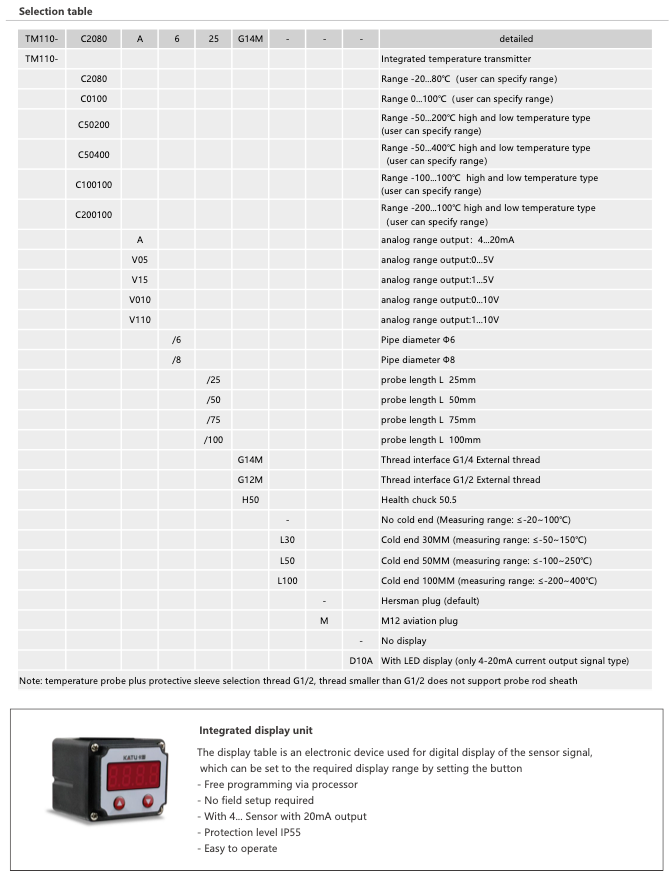

| TM110- | C2080 | A | 6 | 25 | G14M | - | - | - | Detailed |
|---|---|---|---|---|---|---|---|---|---|
| TM110- | Integrated temperature transmitter | ||||||||
| C2080 | Range -20...80℃ (user can specify range) | ||||||||
| C0100 | Range 0...100℃ (user can specify range) | ||||||||
| C50200 | Range -50...200℃ high and low temperature type (user can specify range) | ||||||||
| C50400 | Range -50...400℃ high and low temperature type (user can specify range) | ||||||||
| C100100 | Range -100...100℃ high and low temperature type (user can specify range) | ||||||||
| C200100 | Range -200...100℃ high and low temperature type (user can specify range) | ||||||||
| A | Analog range output: 4...20mA | ||||||||
| V05 | Analog range output: 0...5V | ||||||||
| V15 | Analog range output: 1...5V | ||||||||
| V010 | Analog range output: 0...10V | ||||||||
| V110 | Analog range output: 1...10V | ||||||||
| /6 | Pipe diameter Φ6 | ||||||||
| /8 | Pipe diameter Φ8 | ||||||||
| /25 | Probe length L 25mm | ||||||||
| /50 | Probe length L 50mm | ||||||||
| /75 | Probe length L 75mm | ||||||||
| /100 | Probe length L 100mm | ||||||||
| G14M | Thread interface G1/4 external thread | ||||||||
| G12M | Thread interface G1/2 external thread | ||||||||

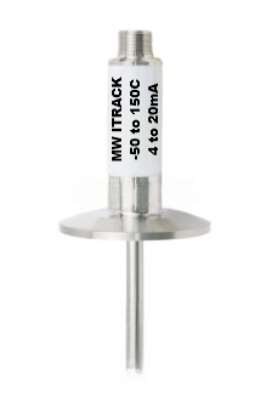

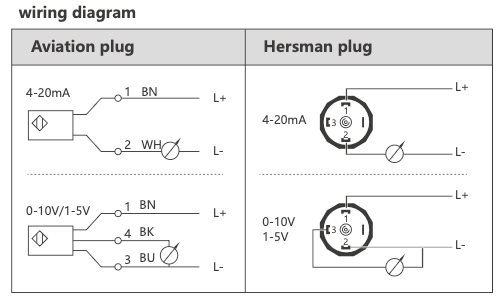

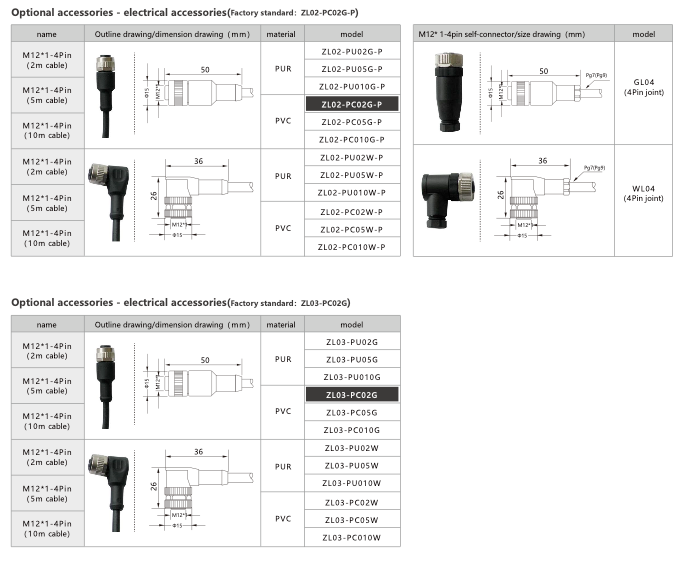

| H50 | Health chuck 50.5 | ||||||||
| - | No cold end (Measuring range: ≤ -20~100℃) | ||||||||
| L30 | Cold end 30MM (Measuring range: ≤ -50~150℃) | ||||||||
| L50 | Cold end 50MM (Measuring range: ≤ -100~250℃) | ||||||||
| L100 | Cold end 100MM (Measuring range: ≤ -200~400℃) | ||||||||
| - | Hersman plug (default) | ||||||||
| M | M12 aviation plug | ||||||||
| - | No display | ||||||||
| D10A | With LED display (only for 4~20mA current output signal type) |
Note: Temperature probe plus protective sleeve selection thread G1/2, thread smaller than G1/2 does not support probe rod sheath.
Integrated display unit
The display table is an electronic device used for digital display of the sensor signal, which can be set to the required display range by setting the button
- Free programming via processor
- No field setup required
- With 4... Sensor with 20mA output
- Protection level IP55
- Easy to operate
