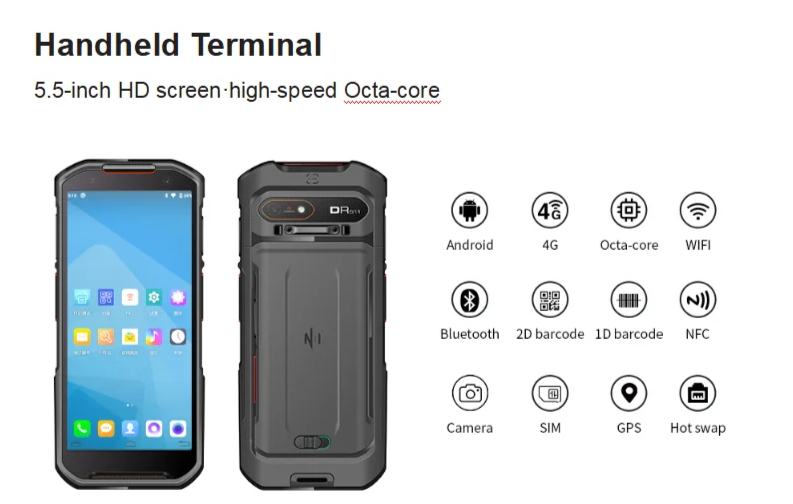

Industrial Android PDA
Product Specification
| Performance | ||
|---|---|---|
| Octa Core | ||
| CPU | MT6769 Octa-core 64-bit 2.0GHz high-performance processor (2 ARM®Cortex-A75 cores +6 ARM®Cortex-A55 cores) | |
| RAM+ROM | 6GB+64GB(DDR4) | |
| System | Android 13 | |
| Data Communication | ||
| WLAN | Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol | |
| WWAN | 2G:GSM
850/900/1800/1900MHz 3G:WCDMA 850/900/1900/2100MHz 4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 |
|
| Bluetooth | Support Bluetooth5.0+BLE,transmission distance 5-10 meters | |
| GNSS | Support GPS,Galileo, Glonass, Beidou | |
| Beidou positioning (Optional) | Built-in Beidou high precision positioning module, dual frequency, BDS B1I\B2a | |
| Physical Specifications | ||
| Dimensions | 166 mm×74.80mm×20.4mm（The thinnest） | |
| Weight | 300g（Depends on device function configuration） | |
| Display | 5.5" IPS color display,resolution 720x1440 | |
| TP | Supports multi-touch | |
| Battery capacity | Rechargeable polymer battery (3.8V 5200mAh) Standby time＞350 hours Working time＞12 hours Charging time <3 hours, use standard power adapter and data cable Built-in spare battery, hot swappable |
|
| Expansion Card slot | TF+NANO SIM/NANO SIMx2(Choose one of two) | |
| Communication interface | Type-C 2.0 USBx1,Support OTG function | |
| Audio | Speaker (loudness >95db), dual microphone support noise reduction, Receiver | |
| Keypad | Power key, Volume +/- key,Scan key × 2 | |
| Sensors | Gravity sensor, Light sensor, Proximity sensor | |
| Language/Input Method | ||
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad | |
| Language | Chinese, English, Korean, Japanese, Malaysian,etc. | |
| Data Collection | ||
| Barcode Scanning（Optional） | ||
| Barcode Scanning | Honeywell N6703, N6602-W2 | |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Co dabar,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar,HIBC,etc. | |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc. | |
| Camera（Standard） | ||
| Rear camera | 20MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting | |
| Front camera | 5MP color camera | |
| NFC（Standard） | ||
| Frequency | 13.56MHz | |
| Protocol | Support ISO14443A/B, 15693 agreement | |
| Distance | 2cm-5cm | |
| User Environment | ||
| Operating temperature | -20℃- 55℃ | |
| Storage temperature | -40℃- 70℃ | |
| Environment humidity | 5%RH--95%RH(no condensation) | |
| Drop specification | temperature range, 6 sides can withstand a height of 1.5 meters,falling to the marble. | |
| Rolling test | 0.5m continuous rolling, 1000 times | |
| Sealing | IP66 | |
| Accessories | ||
| Standard | Adapter, Data cable, Protective film, Instruction manual | |
