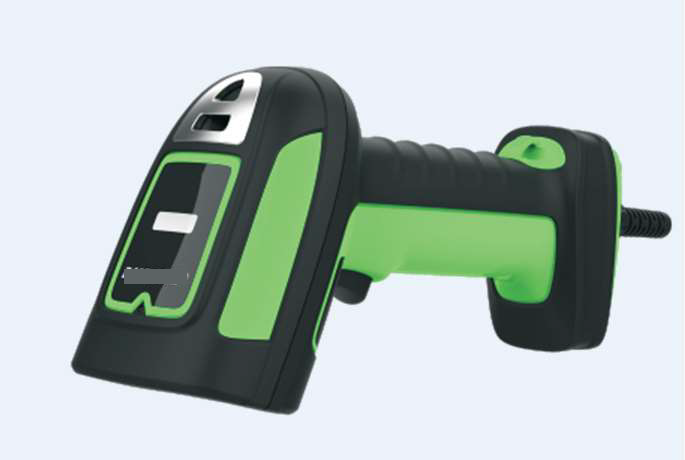

Rugged model – All communication model
Rugged model – All communication model
Introduction
MW series wired / wireless handheld code reader adopts code reading algorithm to provide good decoding capability for DPM. It can read different types of one-dimensional and two- dimensional codes, and output codes rapidly. Adopts illumination system to provide direct lighting and diffused reflection lighting.
Key Feature
- Adopts code reading algorithm to provide good decoding capability.
- Provides good robustness to read codes with spots, defects and low contrast radio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Supports m ultiple communication protocols, including TCP Client / Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, MODBUS, UDP, FINS, Smart SDK.
- Supports IP65 and drop height of 2.8 m.
Model Number
Communication Line:
• MW6000 – Wired
• MW6002 – Wireless
USB:
• MW6001 – Wired
• MW6003 – Wireless
Applicable Industry
PCB, New Energy, Consumer Electronics, Semiconductor, Automobile Parts, etc.
Technical Specification
| Model | MW6001 / MW6003 | MW6000 / MW6002 | |
|---|---|---|---|
| Performance parameter | |||
| Light source | Direct: white LED; diffused reflection: red LED; Cross laser aiming | ||
| Symbologies |
1D: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2D: QR Code, Data Matrix |
||
| Sensor type | CMOS, global shutter | ||
| Resolution | 1280*800 | ||
| Pixel size | 3 µm × 3 µm | ||
| Focal length | 6.7mm | ||
| Scan mode | Manual mode/Continuous mode | ||
| Detection angle | Elevation ± 60 °, Rotation 360 °, Yaw ± 60° | ||
| Field of view | 31° (H) × 20° (V) | ||
| Min. accuracy | ≥3mil | ||
| Max. frame rate | 50FPS/S | ||
| Depth of field* |
Code 39 (3 mil) : 15 ~ 60 mm Code 39 (5 mil) : 5 ~ 80 mm QR Code (5 mil) : 10 ~ 70 mm Data Matrix (10 mil) : 0 ~ 110 mm |
||
| Prompt method | Buzzer, LED, Buzzer | ||
| Symbol contrast | ≥20% | ||
| Ambient illumination | 0 ~ 100000 lux | ||
| Error rate | 1/5million | ||
| Communication protocol | SmartSDK, USB（HID/CDC） | SmartSDK, TCP Client, FTP, HTTP, TCP Server, MELSEC/SLMP, Profinet, Ethernet/IP, ModBus, UDP, Fins, Serial | |
| Physical parameter | |||
| Weight | 460g | ||
| Size | 73.4 mm × 104 mm × 229.5 mm, | ||
| Material | ABS+PC+TPU | ||
| Cable | 2meters | ||
| IP grade | IP65 | ||
| Environmental parameter | |||
| Working temperature | -20°C~50°C | ||
| Storage temperature | -30 °C ~ 70 °C | ||
| Humidity | 5% ~ 95% RH (No condensation) | ||
| Shock resistance | Passed 2.8meters drop test | ||
| Electrical Parameter | |||
| Interface | USB2.0 | Fast Ethernet（100 Mbit/s），RS-232 | |
| Power supply |
For MW6000 / MW6001 : 12V ~ 24 VDC For MW6002 / MW6003 : Battery – 3150 mAH |
||
| Max. power consumption | 6 W@24 VDC | ||
