Differential Pressure Sensor
Electronic Pressure Switch (sensor) PS200

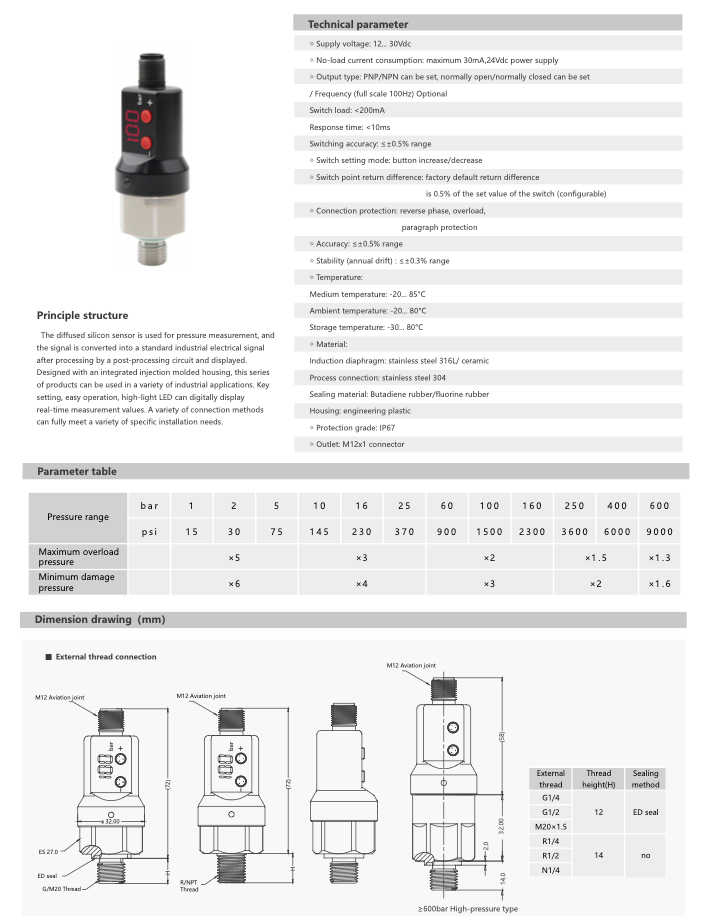

Principle structure
The diffused silicon sensor is used for pressure measurement, and the signal is converted into a standard industrial electrical signal after processing by a post-processing circuit and displayed. Designed with an integrated injection molded housing, this series of products can be used in a variety of industrial applications. Key setting, easy operation, high-light LED can digitally display real-time measurement values. A variety of connection methods can fully meet a variety of specific installation needs.
Technical parameters
- Supply voltage: 12... 30Vdc
- No-load current consumption: maximum 30mA, 24Vdc power supply
- Output type: PNP/NPN can be set, normally open/normally closed can be set / Frequency (full scale 100Hz) Optional
- Switch load: <200mA
Response time: <10ms
Switching accuracy: ≤±0.5% range - Switch setting mode: button increase/decrease
- Switch point return difference: factory default return difference is 0.5% of the set value of the switch (configurable)
- Connection protection: reverse phase, overload, paragraph protection
- Accuracy: ≤±0.5% range
- Stability (annual drift): ≤±0.3% range
- Temperature:
Medium temperature: -20... 85°C
Ambient temperature: -20... 80°C
Storage temperature: -30... 80°C - Material:
Induction diaphragm: stainless steel 316L / ceramic
Process connection: stainless steel 304
Sealing material: Butadiene rubber / fluorine rubber
Housing: engineering plastic - Protection grade: IP67
- Outlet: M12x1 connector
| Pressure Range | |
|---|---|
| Pressure range |
bar / psi 1 / 15 2 / 30 5 / 75 10 / 145 16 / 230 25 / 360 60 / 870 100 / 1500 160 / 2300 250 / 3600 400 / 6000 600 / 9000 |
| Maximum overload pressure | ×5 ×3 ×2 ×1.5 ×1.3 |
| Minimum damage pressure | ×6 ×4 ×3 ×2 ×1.6 |

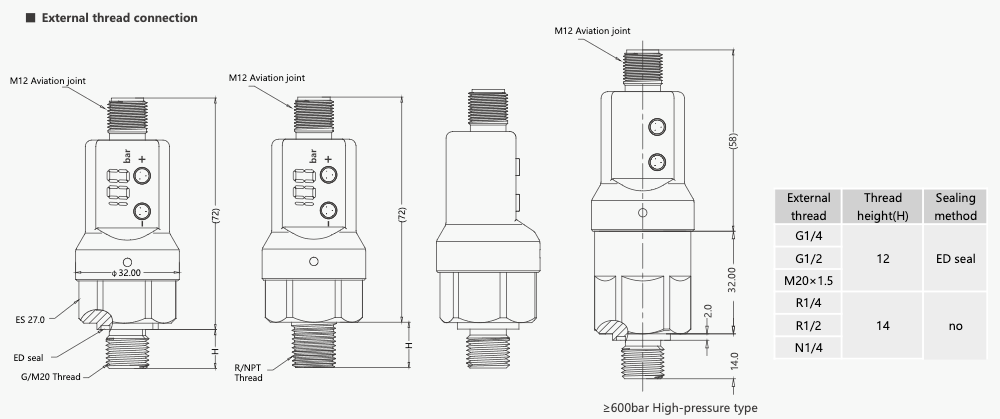

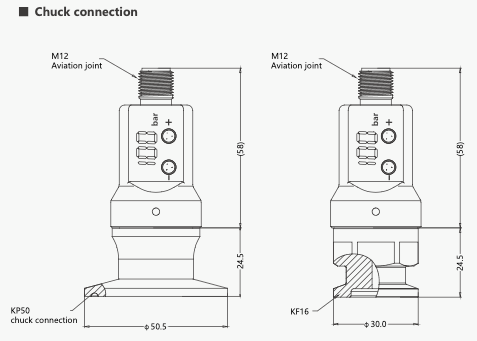

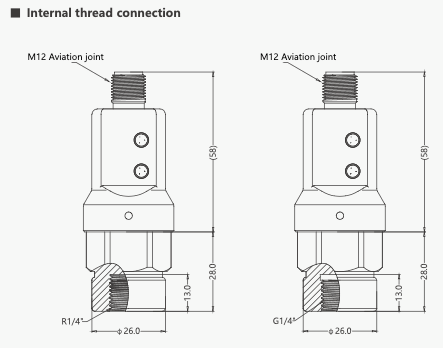

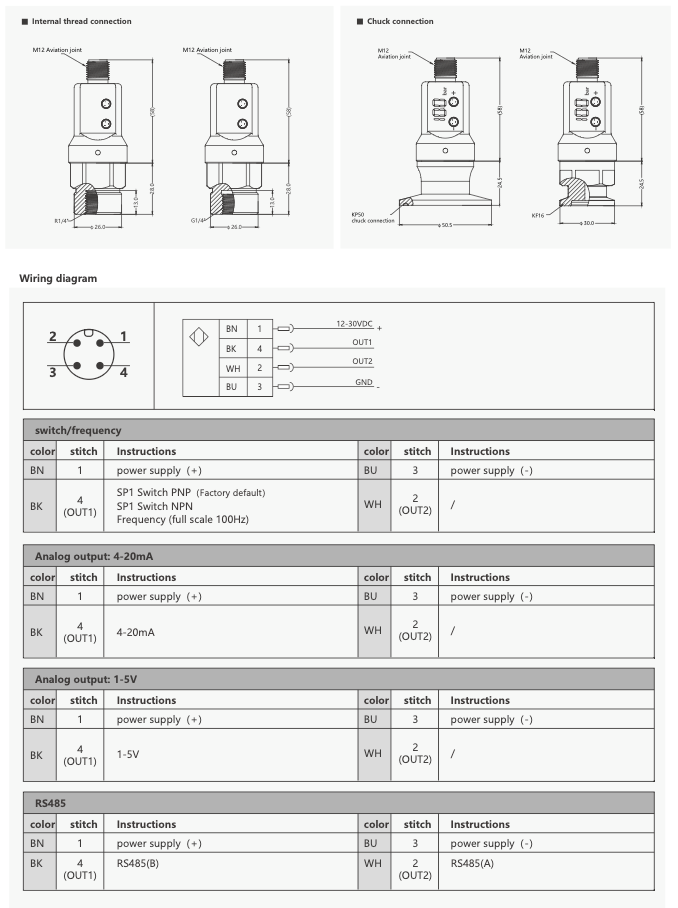

Dimensional drawing（mm）
Wiring diagram
| switch / Frequency | |||||
|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) |
| BK | 4 (OUT1) |
SP1 switch PNP (Factory default) SP1 switch NPN Frequency (full scale 100Hz) |
WH | 2 (OUT2) | / |
| Analog output: 4-20mA | |||||
|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) |
| BK | 4 (OUT1) | 4-20mA | WH | 2 (OUT2) | / |
| Analog output: 1-5V | |||||
|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) |
| BK | 4 (OUT1) | 1-5V | WH | 2 (OUT2) | / |
| RS485 | |||||
|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) |
| BK | 4 (OUT1) | RS485(B) | WH | 2 (OUT2) | RS485(A) |

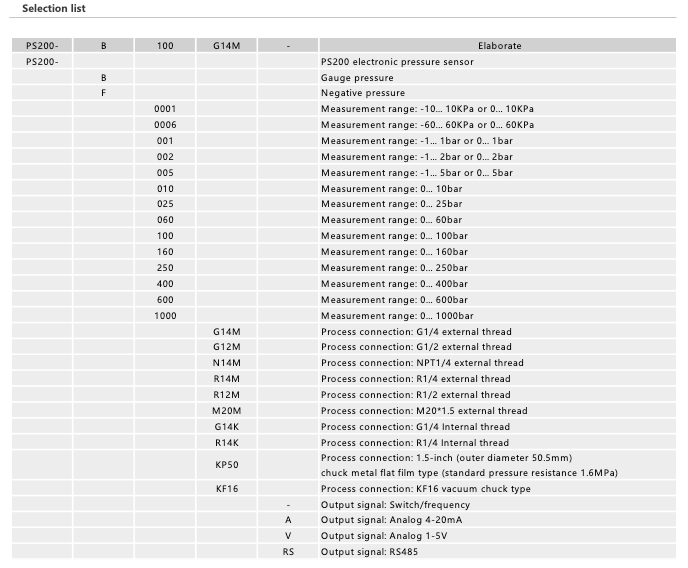

Selection table
| PM200- | B | 100 | G14M | - | expatiate |
|---|---|---|---|---|---|
| PM242- | PS200 electronic pressure sensor | ||||
| B | Gauge pressure | ||||
| F | Negative pressure | ||||
| 0001 | Measurement range: -10... 10KPa or 0... 10KPa | ||||
| 0006 | Measurement range: -60... 60KPa or 0... 60KPa | ||||
| 001 | Measurement range: -1... 1bar or 0... 1bar | ||||
| 002 | Measurement range: -1... 2bar or 0... 2bar | ||||
| 005 | Measurement range: -1... 5bar or 0... 5bar | ||||
| 010 | Measurement range: 0... 10bar | ||||
| 025 | Measurement range: 0... 25bar | ||||
| 060 | Measurement range: 0... 60bar | ||||
| 100 | Measurement range: 0... 100bar | ||||
| 160 | Measurement range: 0... 160bar | ||||
| 250 | Measurement range: 0... 250bar | ||||
| 400 | Measurement range: 0... 400bar | ||||
| 600 | Measurement range: 0... 600bar | ||||
| 1000 | Measurement range: 0... 1000bar | ||||
| G14M | Process connection: G1/4 external thread | ||||
| G12M | Process connection: G1/2 external thread | ||||
| N14M | Process connection: NPT1/4 external thread | ||||
| R14M | Process connection: R1/4 external thread | ||||
| R12M | Process connection: R1/2 external thread | ||||
| M20M | Process connection: M20*1.5 external thread | ||||
| G14K | Process connection: G1/4 Internal thread | ||||
| R14K | Process connection: R1/4 Internal thread | ||||
| KP50 | Process connection: 1.5-inch (outer diameter 50.5mm), chuck metal flat film type (standard pressure resistance 1.6MPa) | ||||
| KF16 | Process connection: KF16 vacuum chuck type | ||||
| - | Output signal: Switch/frequency | ||||
| A | Output signal: Analog 4-20mA | ||||
| V | Output signal: Analog 1-5V | ||||
| RS | Output signal: RS485 |

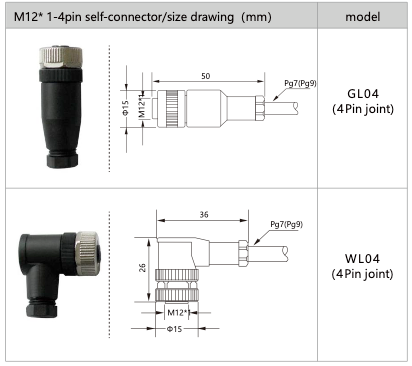

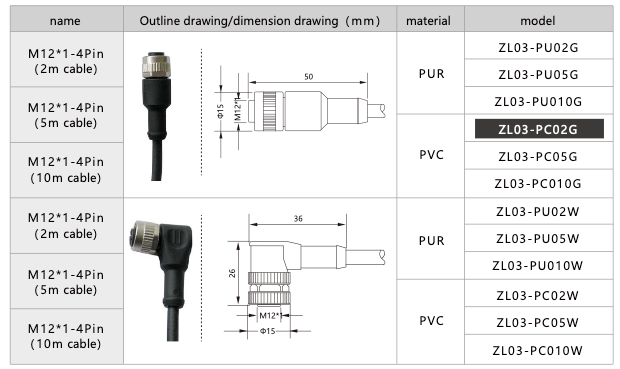

Factory standard:ZL03-PC02G

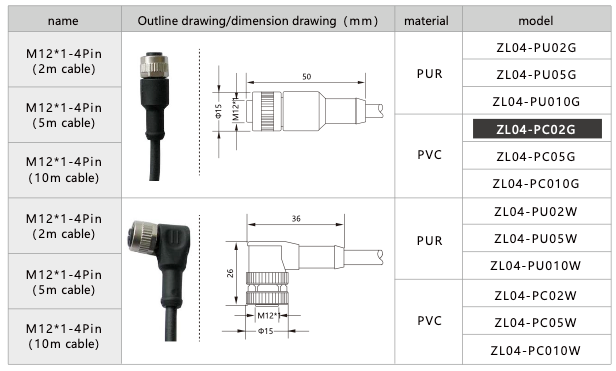

Factory standard:ZL04-PC02G
