Electronic Digital Display Pressure Sensor PS510

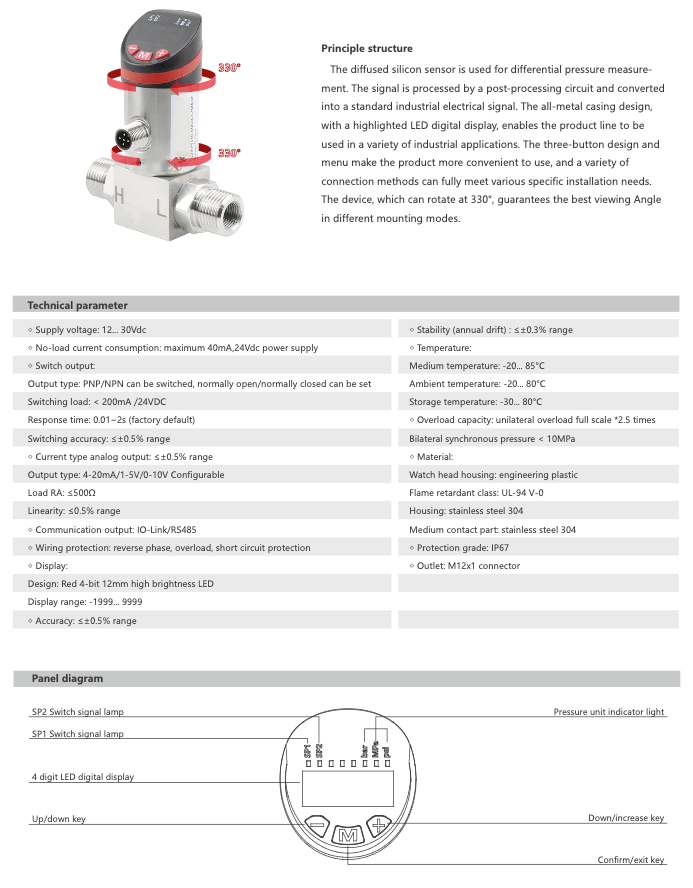

Principle structure

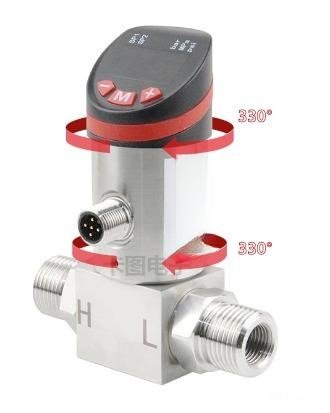

The diffused silicon sensor is used for pressure measurement, and the signal is processed by a post-processing circuit and converted into a standard industrial electrical signal for output and display. The all-metal casing design, with a highlighted LED digital display, enables the product line to be used in a variety of industrial applications. The three-button design and menu make the product more convenient to use, and a variety of connection methods can fully meet various specific installation needs. The device, which can rotate at 330°, guarantees the best viewing Angle in different mounting modes.
Technical parameters
- Supply voltage: 12... 30Vdc
- Switch output:
Output type: PNP/NPN can be switched, normally open/normally closed can be set
switch load: <200mA /24VDC
Response time: 0.01~2s (Factory default)
Switching accuracy: ≤±0.5% range
Current model analog output: ≤±0.5% range
Output type: 4-20mA/1-5V/0-10V can be set
Load RA: ≤500Ω
Linearity: ≤0.5% range
Communication output: IO-Link/RS485
Connection protection: reverse phase, overload, short circuit protection - Display:
Design: Red 4-bit 12mm high brightness LED
Display range: -1999... 9999 - Accuracy: ≤±0.5% range
- Stability (annual drift) : ≤±0.3% range
- Temperature:
Medium temperature: -20... 85 ° c.
Ambient temperature: -20... 80 ° c.
Storage temperature: -30... 80 ° c. - Materials:
Case: engineering plastic
Flame retardant grade: UL-94 V-0
Housing: stainless steel 304
Medium contact part: stainless steel 304 - Protection level: IP67
- Outlet mode: M12x1 connector
Wiring diagram
| Two way switch / IO-Link / Frequency + one way analog | ||||||||
|---|---|---|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) | GY | 5(OUT3) | 4-20mA（Factory default） 1-5V 0-10V |
| BK | 4 (OUT1) |
SP1 switch PNP (Factory default) SP1 switch NPN IO-Link Frequency (full scale 100Hz) |
WH | 2 (OUT2) |
SP2 switch PNP (Factory default) SP2 switch NPN |
|||
| Two-way switch / Frequency | |||||
|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) |
| BK | 4 (OUT1) |
SP1 switch PNP (Factory default) SP1 switch NPN Frequency (full scale 100Hz) |
WH | 2 (OUT2) |
SP2 switch PNP (Factory default) SP2 switch NPN |
| One switch / IO-Link / Frequency + analog | |||||
|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) |
| BK | 4 (OUT1) |
SP1 switch PNP (Factory default) SP1 switch NPN IO-Link Frequency (full scale 100Hz) |
WH | 2 (OUT2) |
4–20mA (Factory default) 1–5V 0–10V |
| RS485 | |||||
|---|---|---|---|---|---|
| Color | Stitch | Instructions | Color | Stitch | Instructions |
| BN | 1 | Power supply (+) | BU | 3 | Power supply (−) |
| BK | 4 (OUT1) | RS485(B) | WH | 2 (OUT2) | RS485(A) |

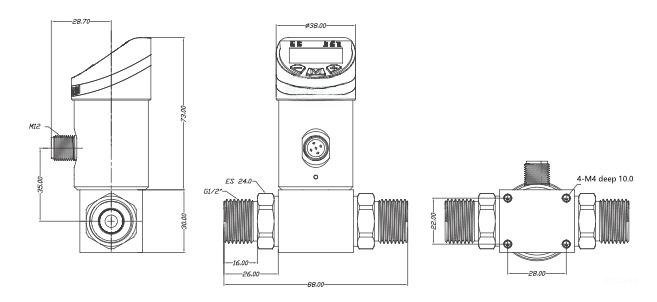

Dimension drawing (mm)
Selection table
| PS510- | 001 | G14K | G14K | S2 | expatiate |
|---|---|---|---|---|---|
| PM510 | PS510 series electronic digital display pressure sensor | ||||
| 001 | Setting range: 0... 0.1 bar | ||||
| 002 | Setting range: 0... 0.2 bar | ||||
| 005 | Setting range: 0... 0.5 bar | ||||
| 010 | Setting range: 0... 1bar | ||||
| 050 | Setting range: 0... 5bar | ||||
| 060 | Setting range: 0... 6bar | ||||
| 100 | Setting range: 0... 10bar | ||||
| 160 | Setting range: 0... 16bar | ||||
| 250 | Setting range: 0... 25bar | ||||
| 060 | Measuring range: 0... 60bar | ||||
| G14K | H High voltage end interface thread: G1/4 internal thread | ||||
| 160 | Measuring range: 0... 160bar | ||||
| G14M | H High voltage end interface thread: G1/4 external thread | ||||
| G12M | H High voltage end interface thread: G1/2 external thread | ||||
| M20M | H High voltage end interface thread: M20*1.5 external thread | ||||
| G14K | L Low pressure end interface thread: G1/4 internal thread | ||||
| G14M | L Low pressure end interface thread: G1/4 external thread | ||||
| G12M | L Low pressure end interface thread: G1/2 external thread | ||||
| M20M | L Low pressure end interface thread: M20*1.5 external thread | ||||
| S2 | Two switch output/frequency (4-core cable) | ||||
| SA | One switch output /IO-link/ frequency + analog output (4-core cable) | ||||
| A3 | two switch output /IO-link/ frequency + analog output (5-core cable) | ||||
| RS | RS485 communication (4-core cable) |

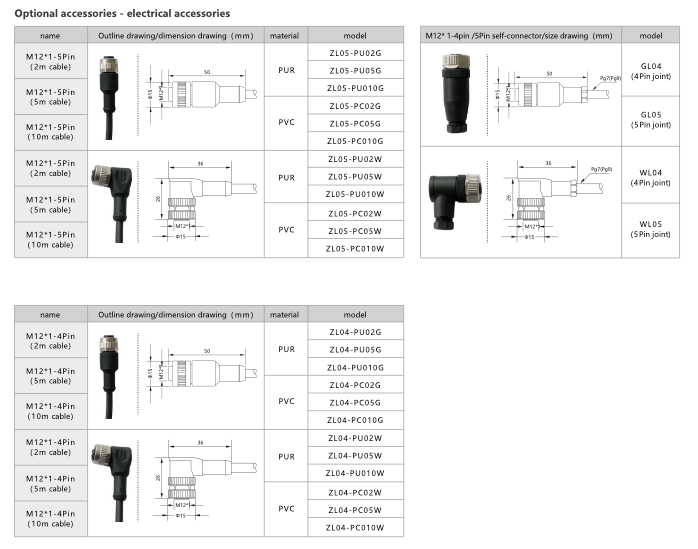

Optional accessories - electrical accessories
