Electronic Tuning Fork Level Switch LS250
Principle structure

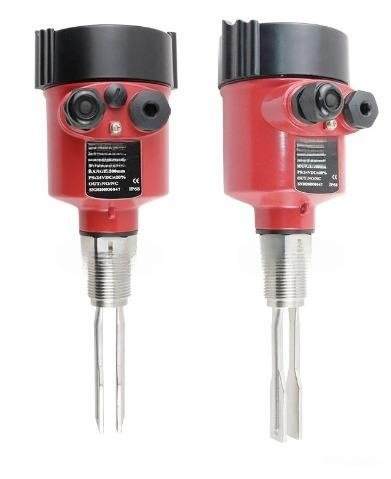

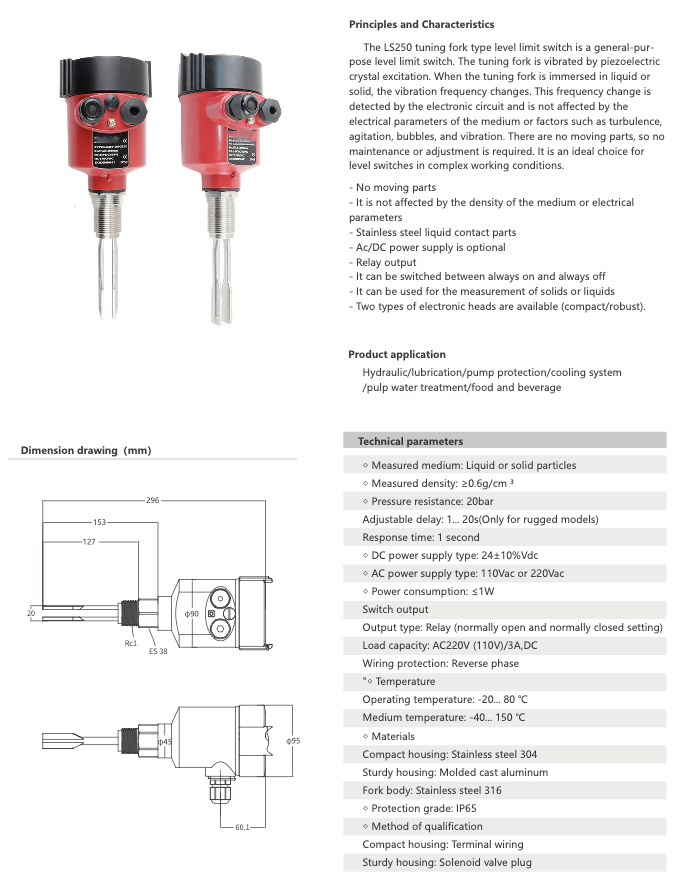

The LS250 tuning fork type level limit switch is a general-pur- pose level limit switch. The tuning fork is vibrated by piezoelectric crystal excitation. When the tuning fork is immersed in liquid or solid, the vibration frequency changes. This frequency change is detected by the electronic circuit and is not affected by the electrical parameters of the medium or factors such as turbulence, agitation, bubbles, and vibration. There are no moving parts, so no maintenance or adjustment is required. It is an ideal choice for level switches in complex working conditions.
- No moving parts
- It is not affected by the density of the medium or electrical parameters
- Stainless steel liquid contact parts
- Ac/DC power supply is optional
- Relay output
- It can be switched between always on and always off
- Two types of electronic heads are available (compact/robust).
Product application
Hydraulic/lubrication/pump protection/cooling system /pulp water treatment/food and beverage

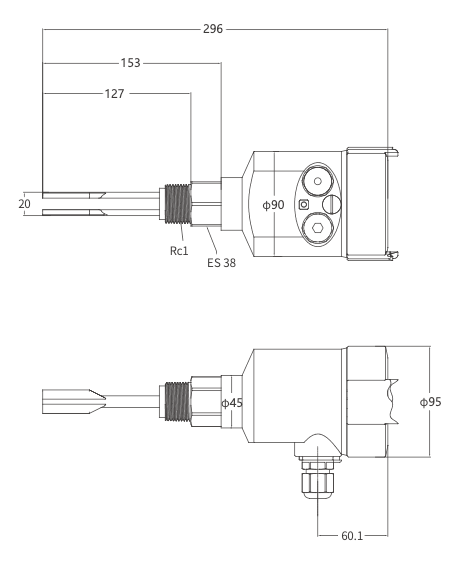

Dimension drawing(mm)
Technical parameters
- Measured medium: Liquid or solid particles
- Measured density: ≥0.6g/cm 3
- Pressure resistance: 20bar
Adjustable delay: 1... 20s(Only for rugged models)
Response time: 1 second - DC power supply type: 24±10%Vdc
- AC power supply type: 110Vac or 220Vac
- Power consumption: ≤1W
- Switch output
Output type: Relay (normally open and normally closed setting)
Load capacity: AC220V (110V)/3A,DC
Wiring protection: Reverse phase - Temperature
Operating temperature: -20... 80 °C
Medium temperature: -40... 150 °C - Materials
Compact housing: Stainless steel 304
Sturdy housing: Molded cast aluminum
Fork body: Stainless steel 316 - Protection grade: IP65

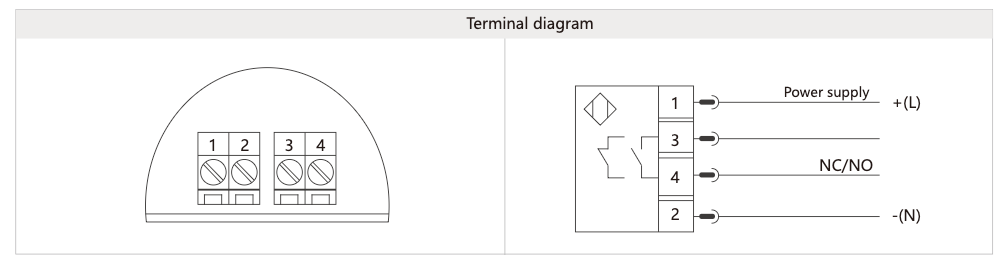

- Method of qualification
Compact housing: Terminal wiring
Sturdy housing: Solenoid valve plug

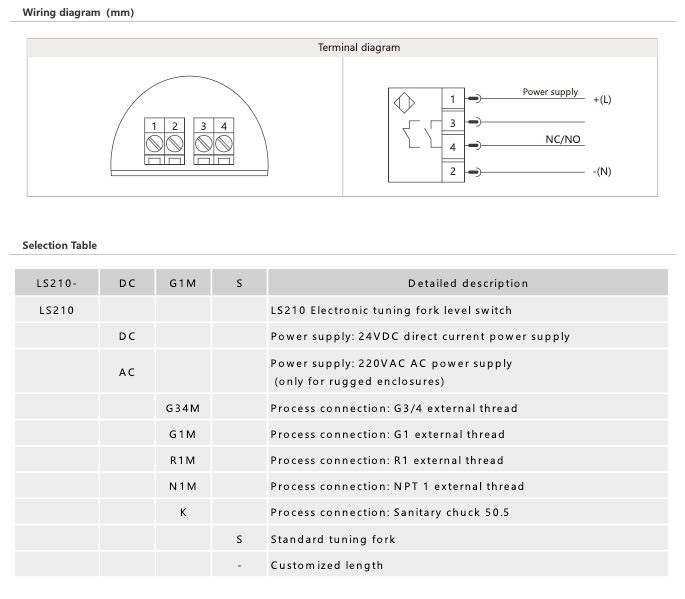

Selection table
| LS210- | DC | G1M | S | Detailed description |
|---|---|---|---|---|
| LS210 | LS210 Electronic tuning fork level switch | |||
| DC | Power supply : 24VDC direct current power supply | |||
| AC | Power supply : 220VAC AC power supply (only for rugged enclosures) | |||
| G34M | Process connection: G3/4 external thread | |||
| G1M | Process connection: G1 external thread | |||
| R1M | Process connection: R1 external thread | |||
| N1M | Process connection: NPT1 external thread | |||
| K | Process connection : Sanitary chuck 50.5 | |||
| S | Standard tuning fork | |||
| - | Customized length |
